Manual Free Flow Conveyor

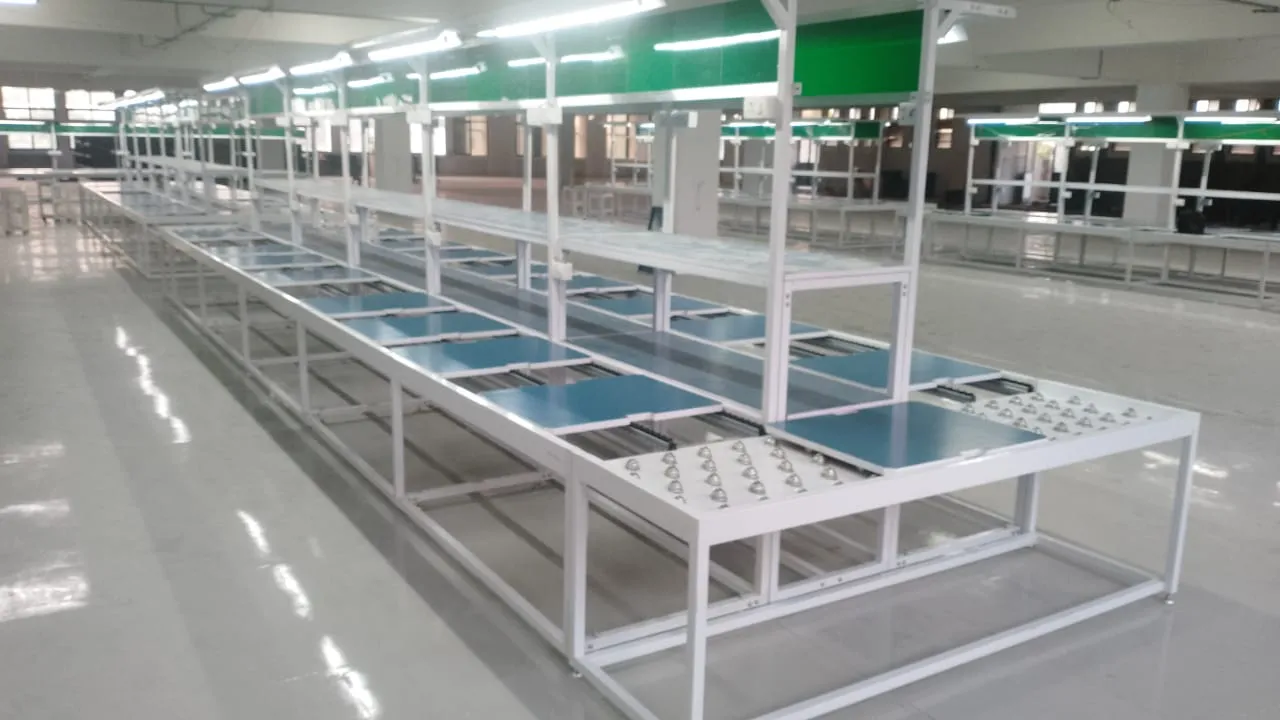

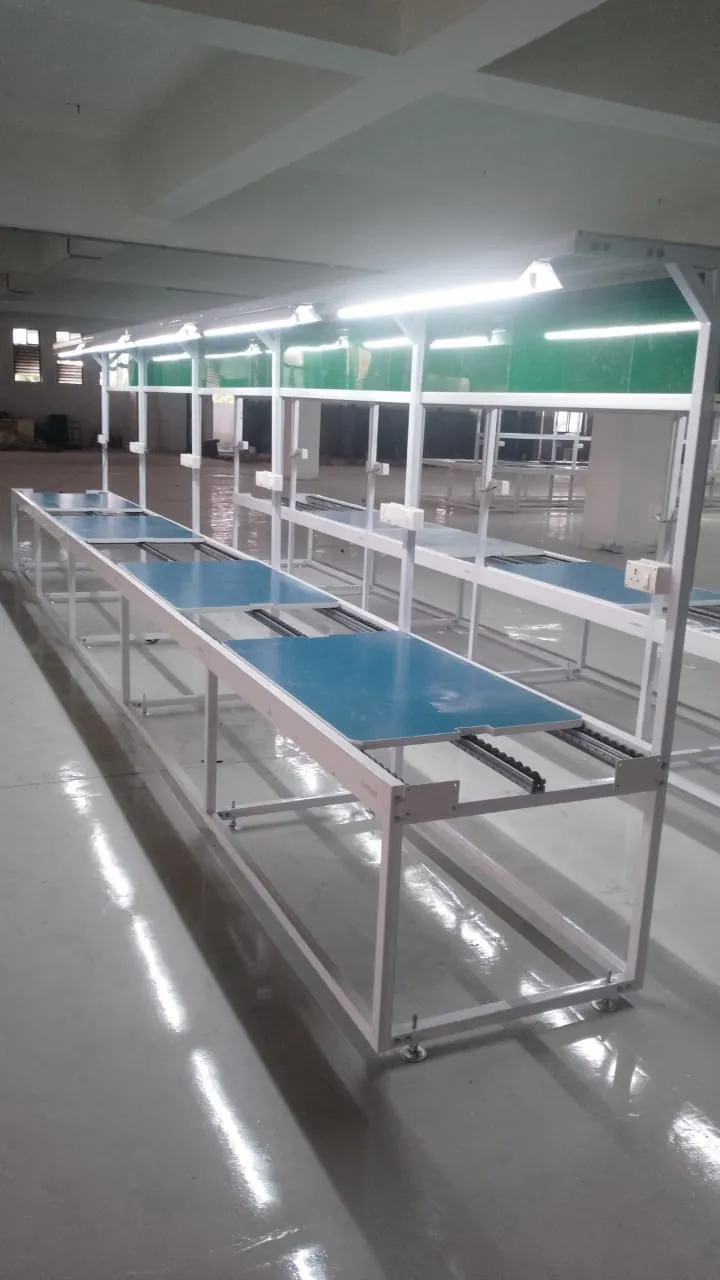

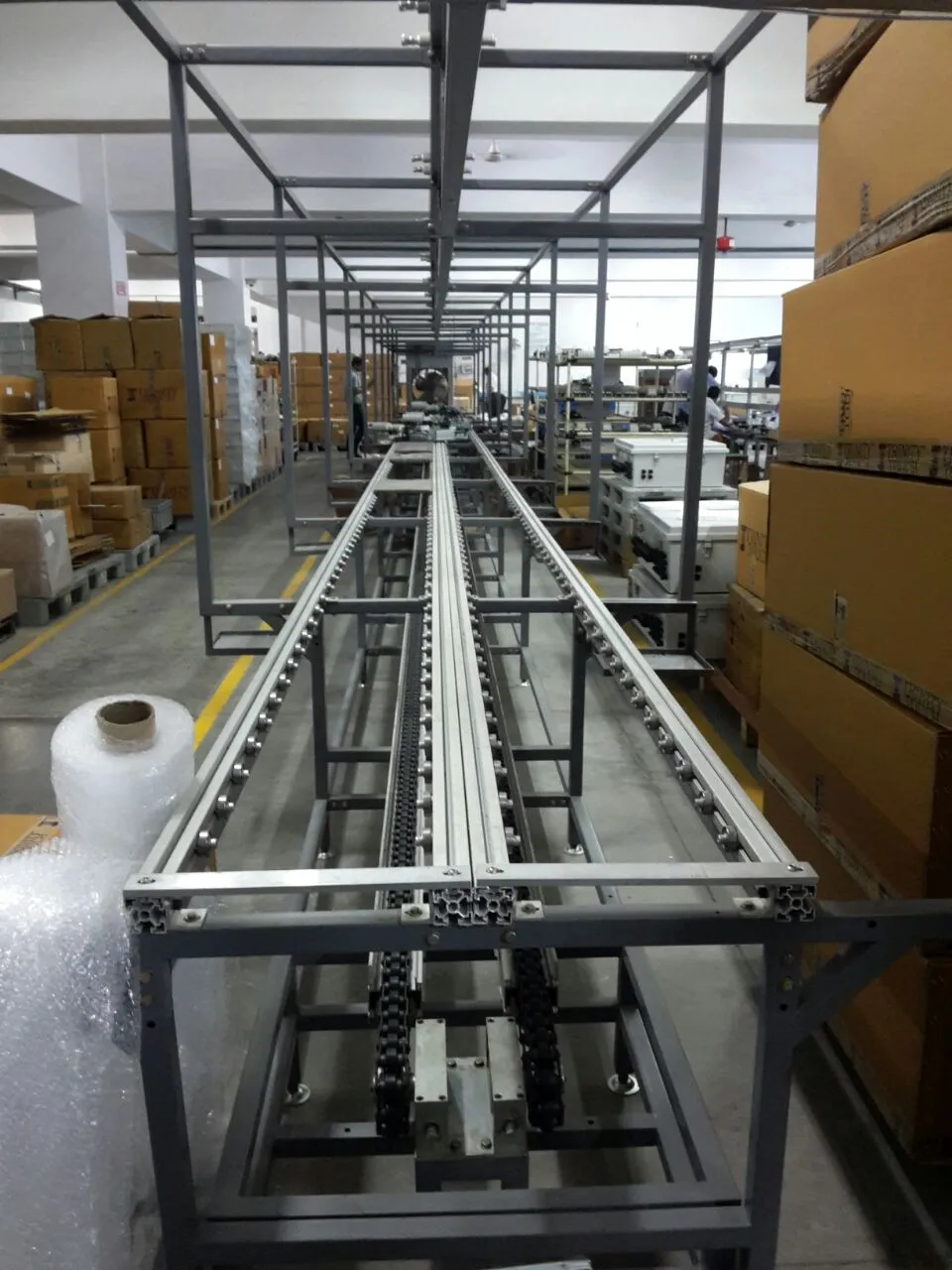

This type of conveyor is used for final assembly of products or box building. In this the part to be assembled is placed on a pallet and the assembly is done on the conveyor itself. It is a manual push type conveyor and the pallet is manually pushed by the operator to transfer the pallet from one station to the other.

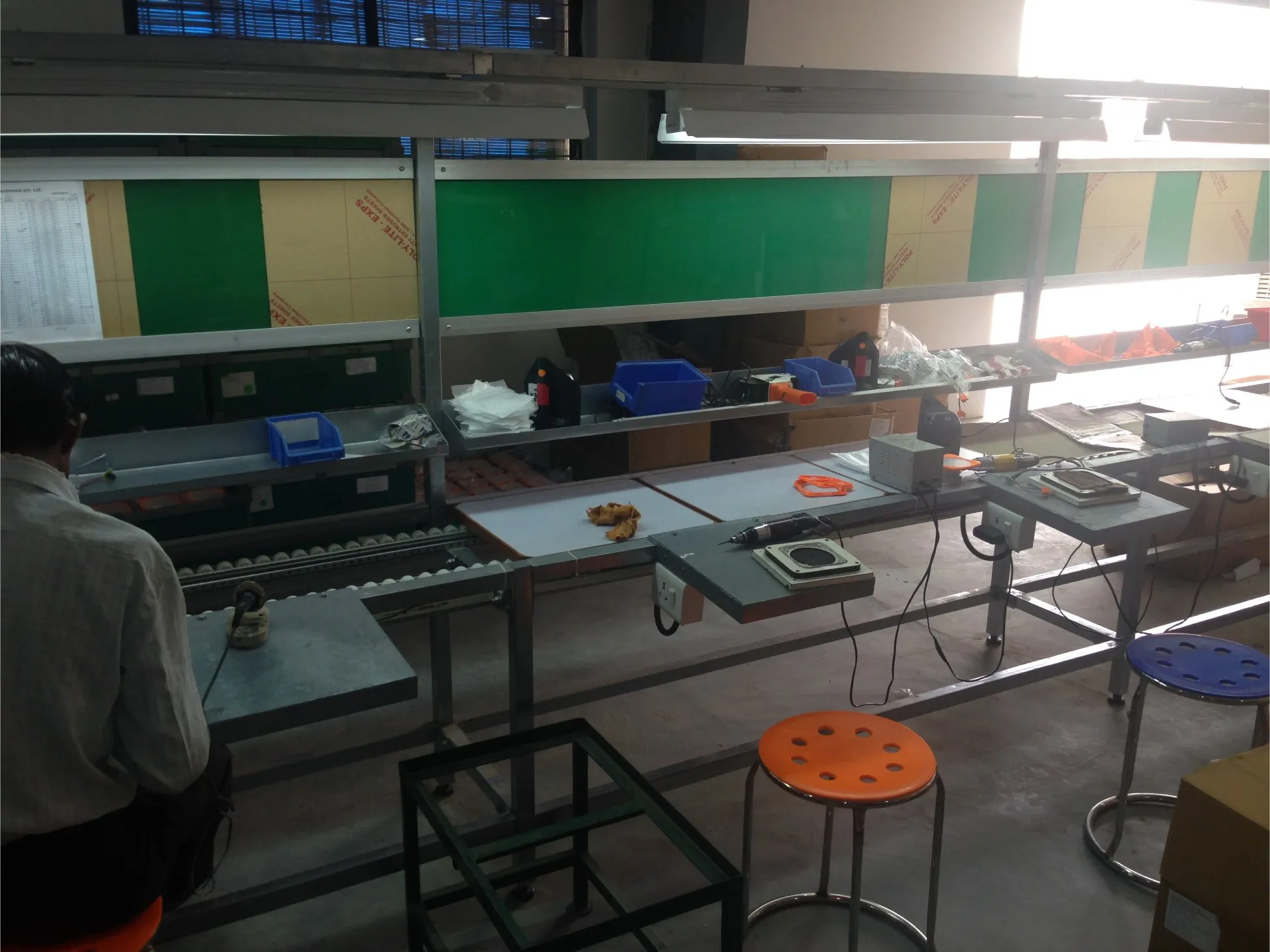

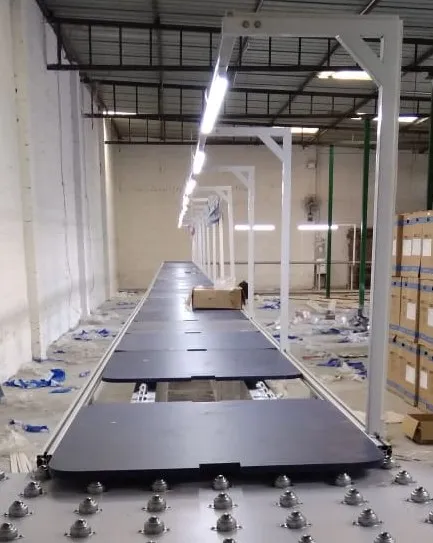

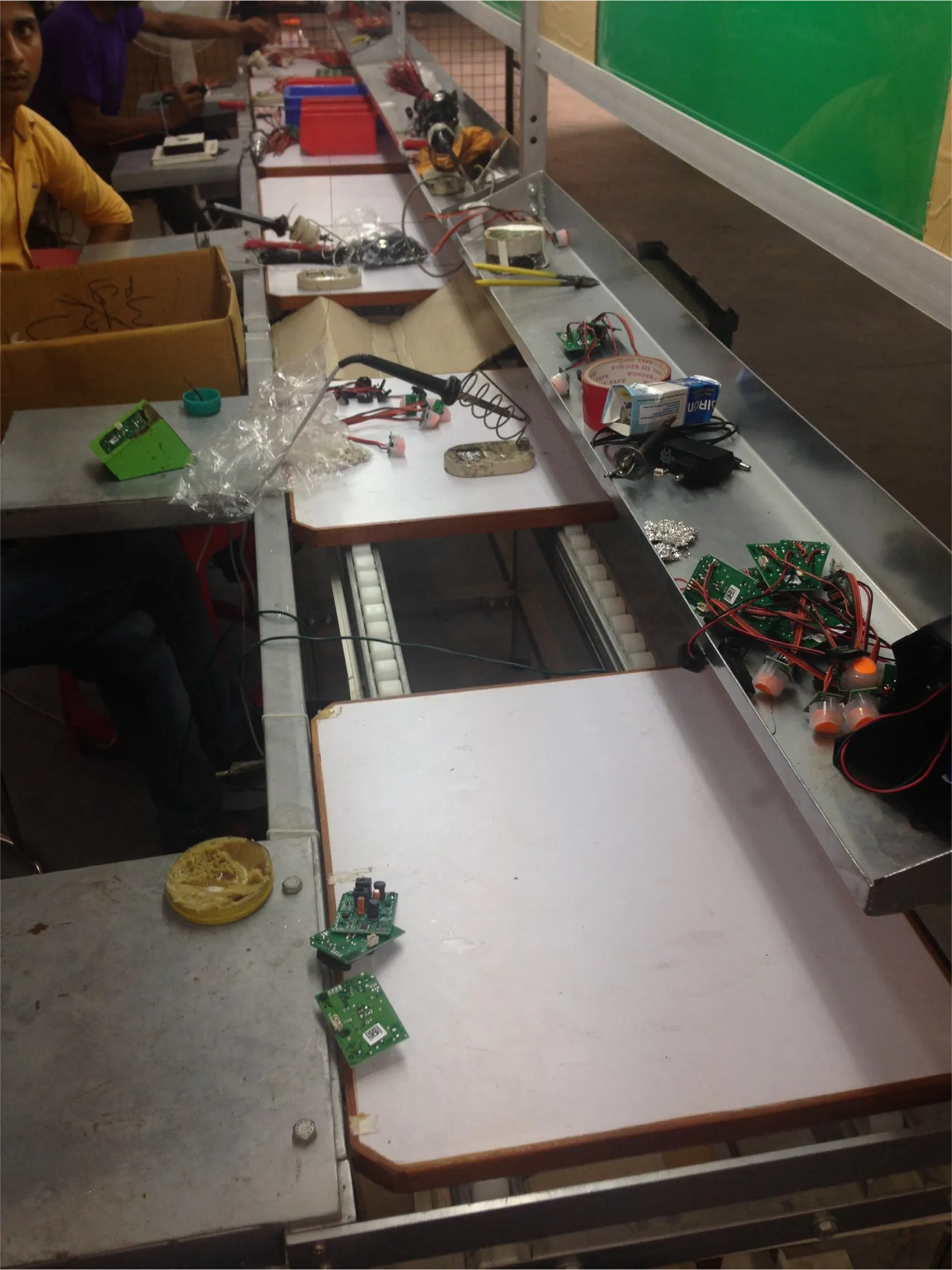

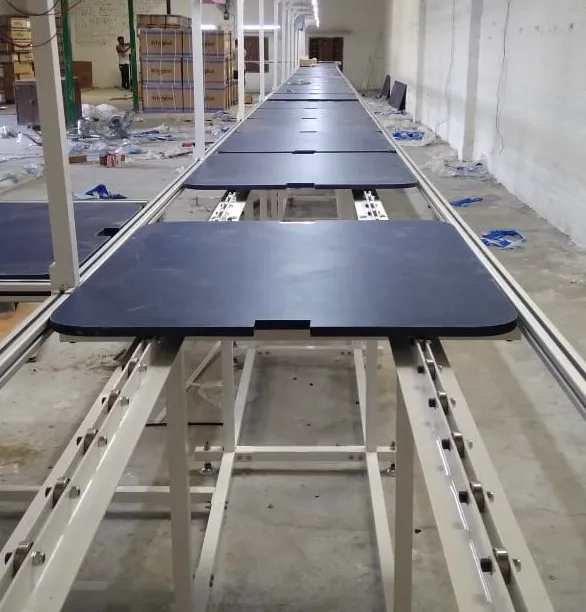

This type of conveyor is used for final assembly of products. The part to be assembled is placed on a pallet made of wooden board. The side edges of the pallet is placed on a pair of track of rollers. The operator completes the assembly job that has been assigned to him, and pushes the pallet to the next work station. This type of conveyor is used for assembly of heavier appliances like TV, AC, refrigerator, water cooler, inverter, UPS etc.

Enquire Now Call Now @ +91 987 1008 473
Specifications
STANDARD OPTION
Pallet Size As per Product Size
Pallet Width Min. 500 mm Max. 800 mm ( In increments of 100 mm)

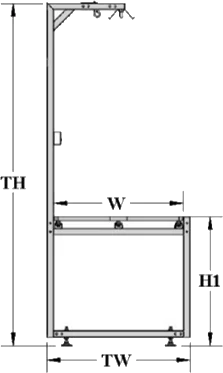

Conveyor Width Pallet Width + 80 mm
Conveyor Length As per requirement
Working Height 900 mm OR As per user requirement
Total Height 2100 mm OR As per user requirement
Height adjustment +/- 50 mm As per user requirement
Ht. Adj. Method Through Levelling Feet Through bracket or other arrangement
Structure Powder coated MS pipe frame SS frame / Anodized Al profile
Conveyor Speed Fixed or Variable as per user requirement

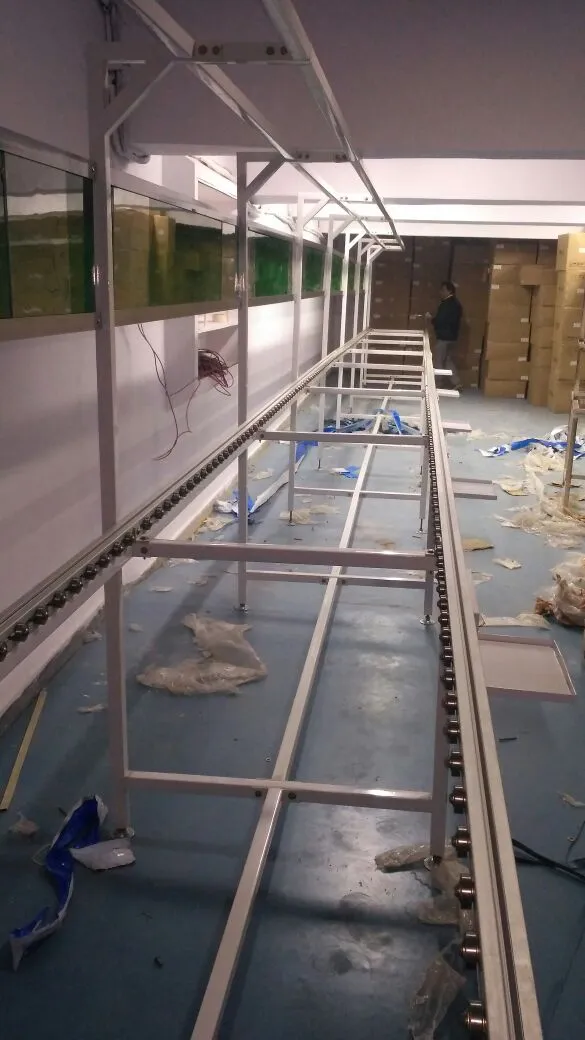

Pallet Movement • Through pair of bearing track
• Through pair of placon channels
Pneumatic Stopper Pneumatic Stopper Cylinder. Qty as per requirement
Display Board Acrylic Sheet
(Green) 		• Pin Board with colour of your choice
• White Board
• Magnetic Board
Lighting We provide sheet metal reflectors one per 6 feet module on both side of belt • LED Tube light one at every 6 feet module on both side of belt
• Qty of lights as per your requirement
Power Socket Provided on request with following information :

• Combination of Socket & Switch required per board with current specification
• Number of power board per 6 feet module placement of the Power board
Pneumatic Line Provided on request with following information :

• Number of outlets per 6 feet module
• Output Required by QRC or Ball Valve
• Placement of Line above the top post or beneath the belt
Pallet Return Path (PRP) • Through Conveyor Line running below the main line
• Through Conveyor Line running parallel, behind the main line
Pallet Transfer
For PRP Below Main Line Automatic Pallet Loader/Un-Loader Unit
For PRP Parallel to Main Line Automatic Cross Transfer Unit

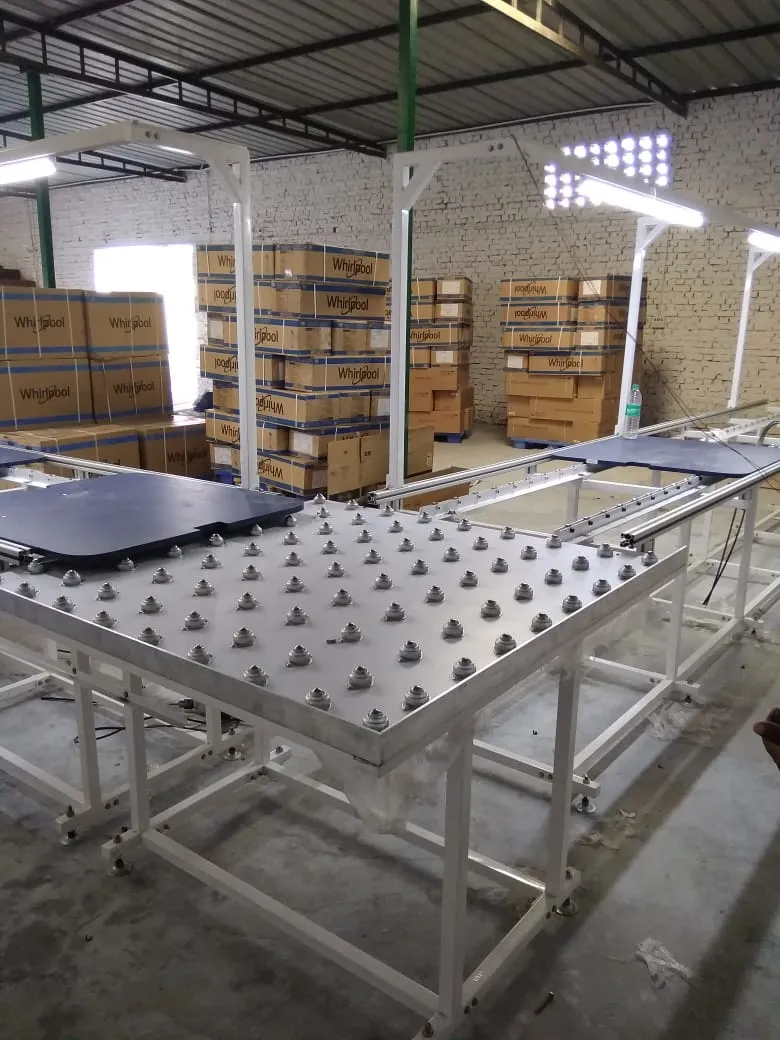

Manual Ball Transfer Unit
Other Optional • Tool Slider for Spring Balancer on Top Post
• Child Part feeding through FIFO Trolley or Trolley with Bin 		• Cable Tray
• Bottle Holder
• Wall Fan on Top Post
• Bin Rail or Shelf for child parts
