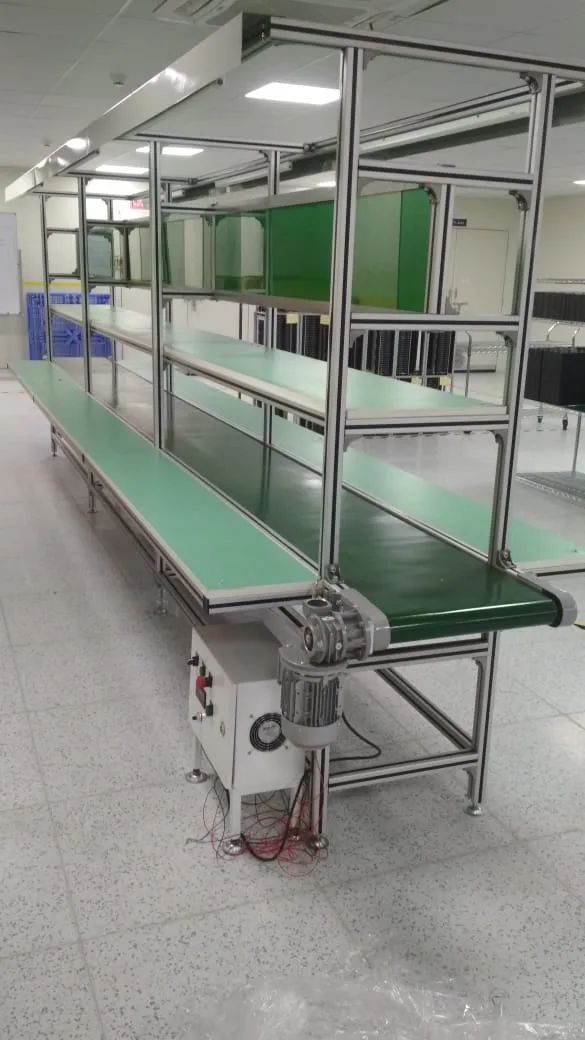

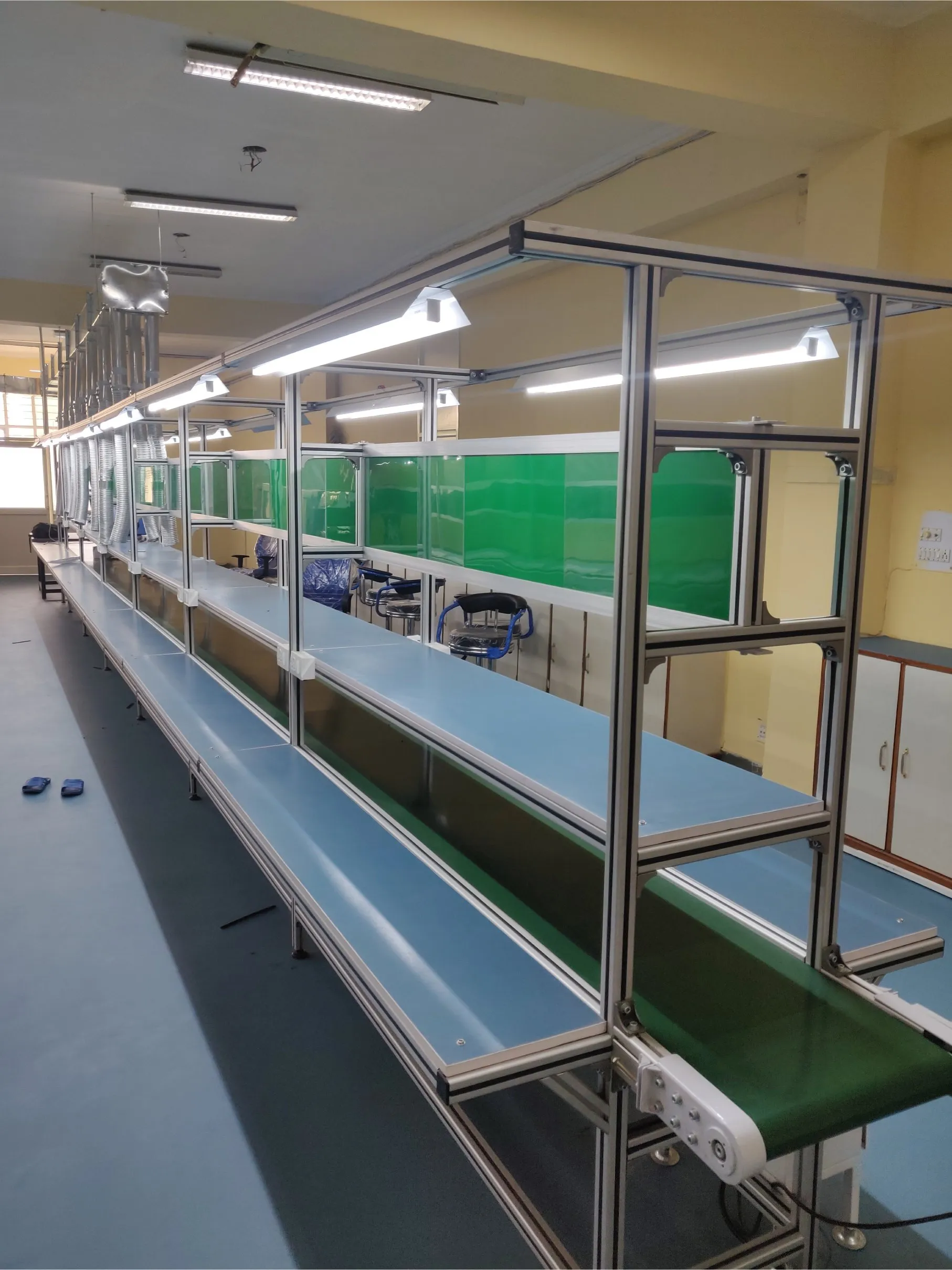

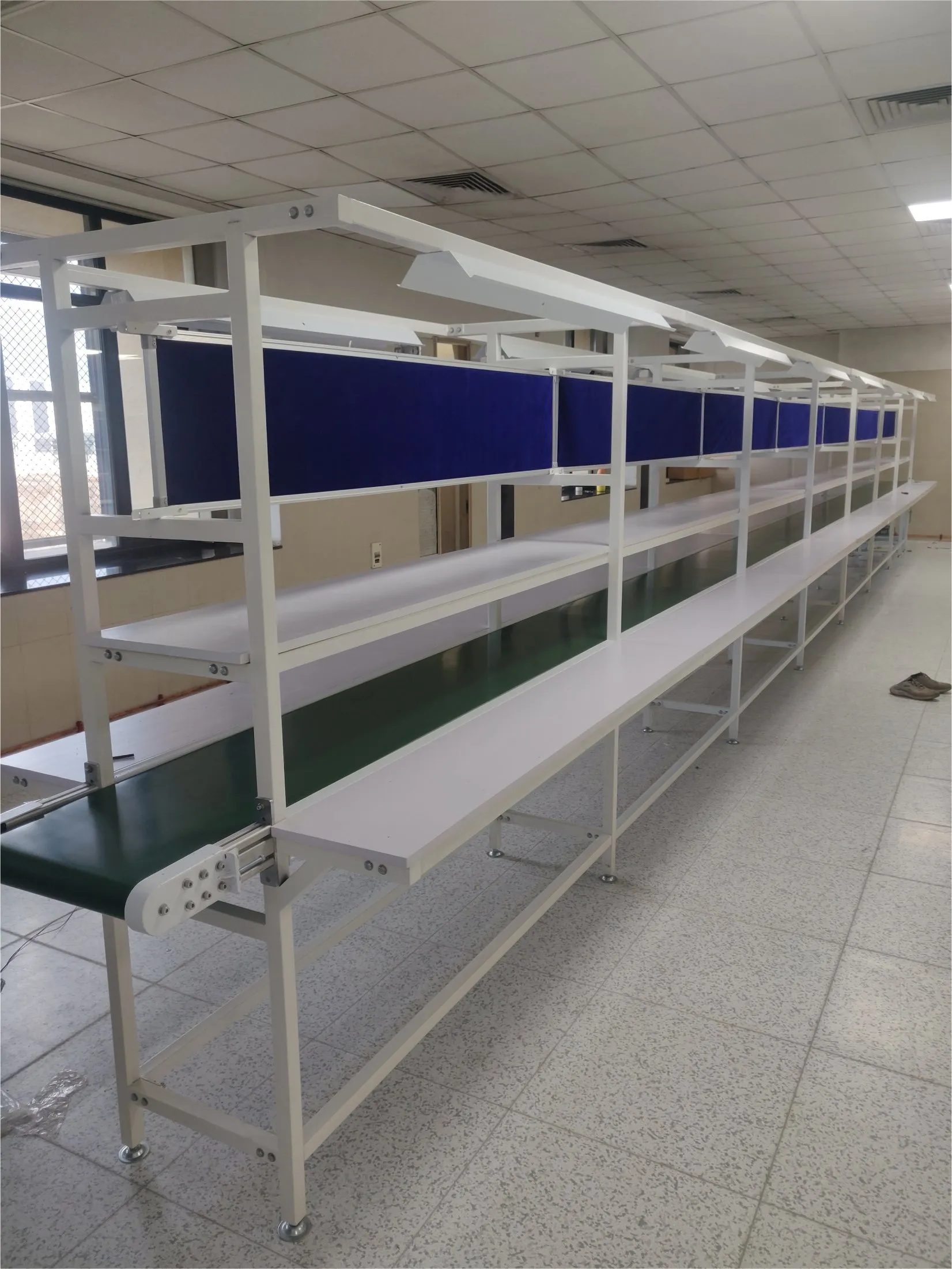

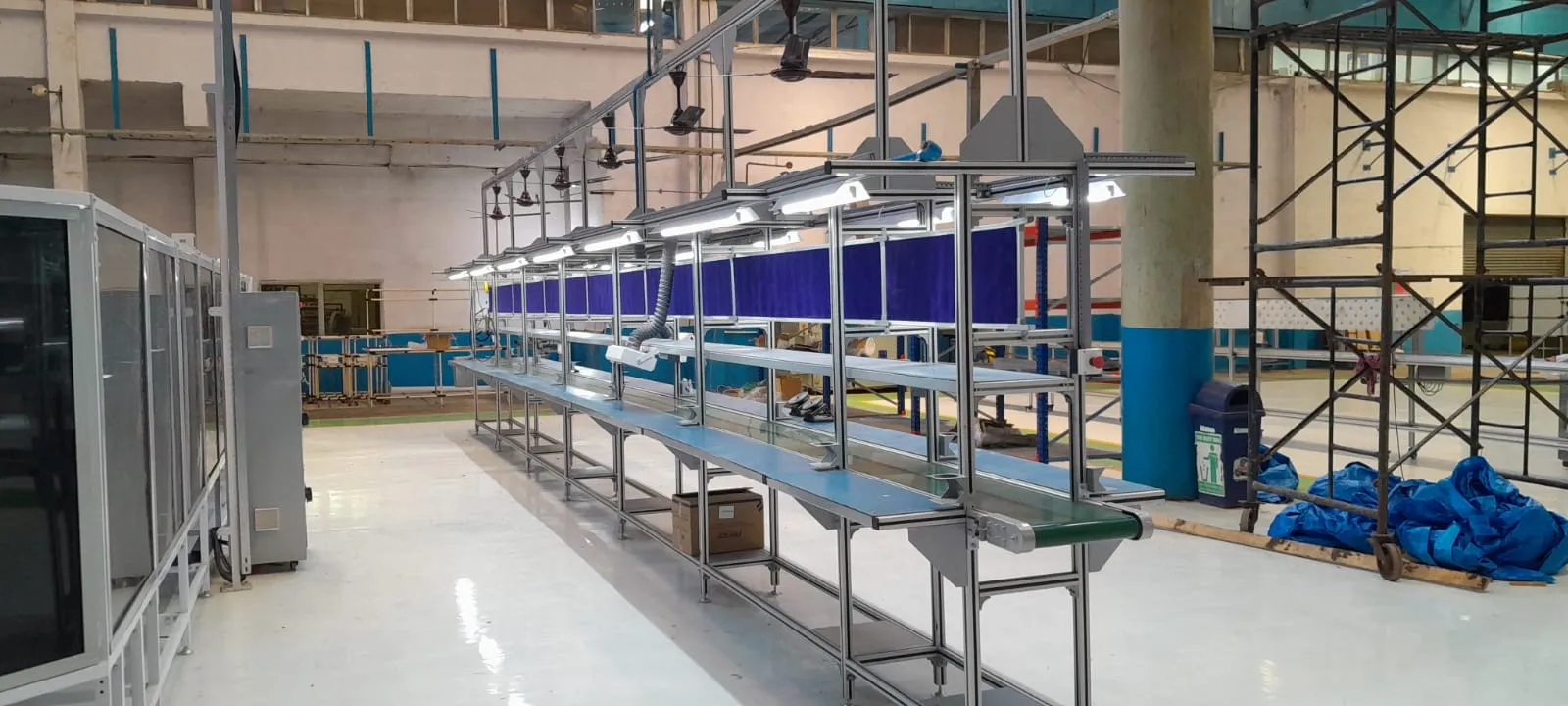

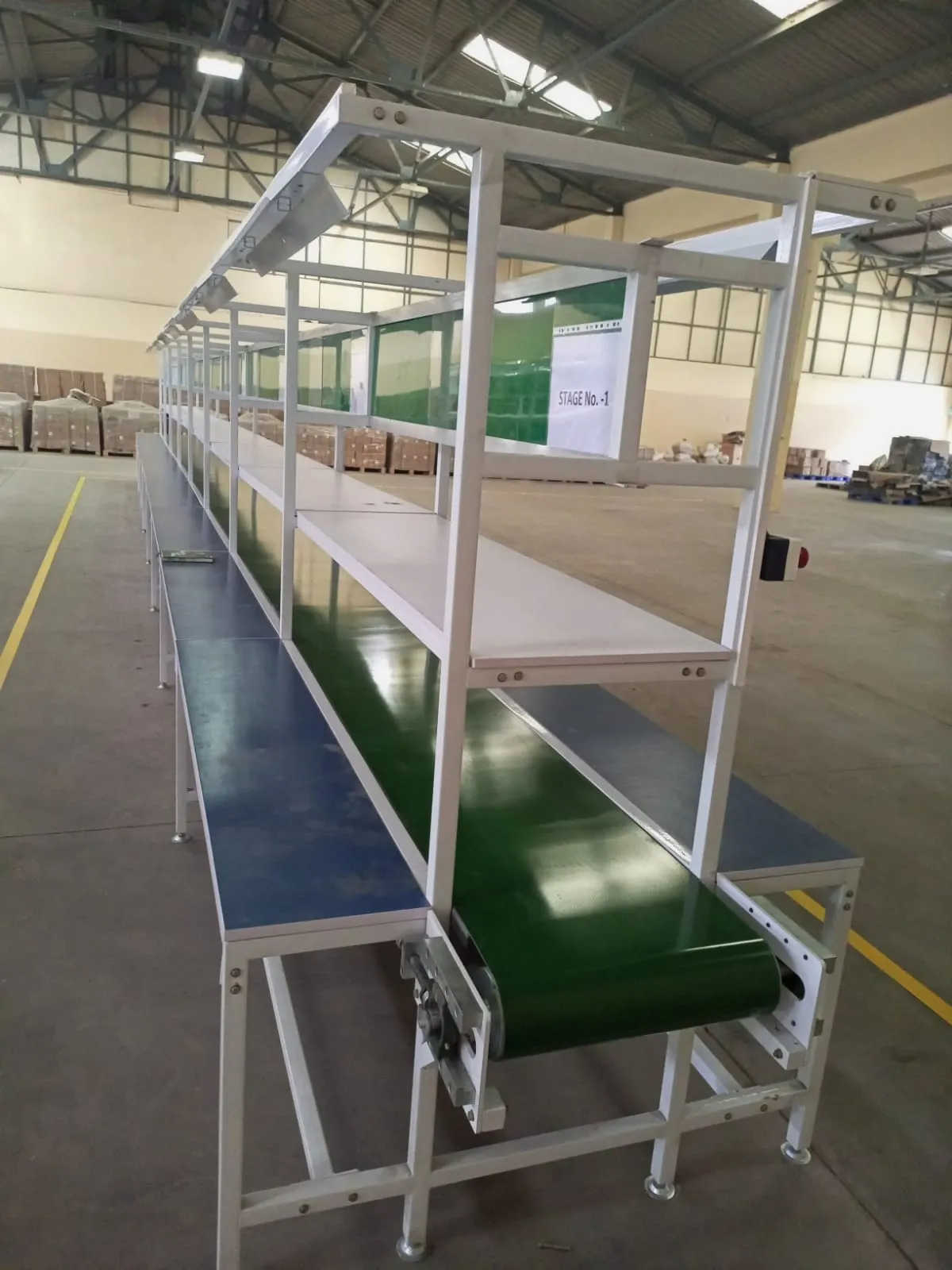

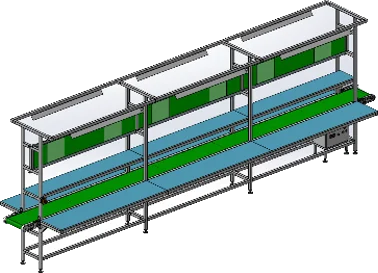

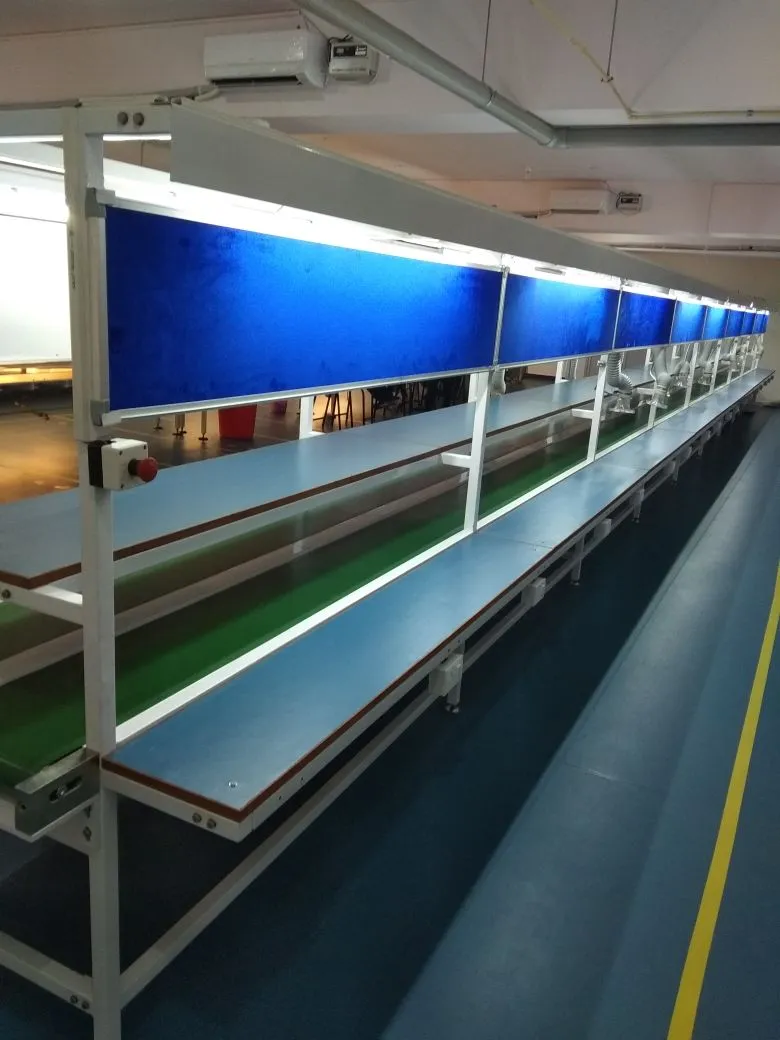

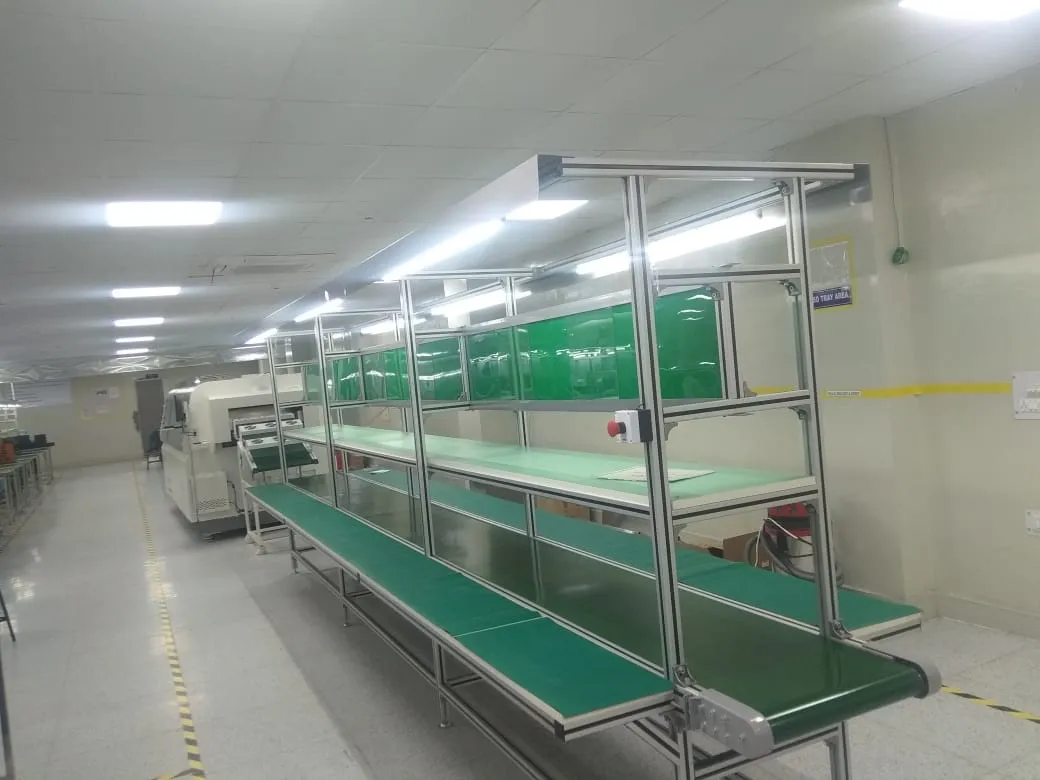

Touch-up Belt Conveyor With Double Sided Working Platform

This type of conveyor has the belt running at the centre and working platforms, running parallel to the belt on both its sides.

This type of conveyor has working platforms running parallel to the belt conveyor which runs at the centre. The operators work on this line facing the belt. They pick up the part to be processed from the belt and place it back, after completing their job. This kind of conveyor is mostly used for light weight applications. Like touch up of soldered PCB’s, wiring , assembly, testing and packing.

APPLICATION INDUSTRIES

  • ASSEMBLY LINE
  • PACKING LINE
  • INSPECTION LINE
  • MATERIAL TRANSFER
Enquire Now Call Now @ +91 987 1008 473

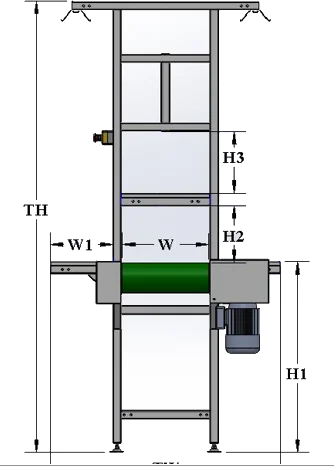

Dimension
L LENGTH OF CONVEYOR
W BELT WIDTH
W1 WIDTH OF WORKING PLATFORM
TW TOTAL WIDTH
H1 OWRKING HEIGHT
H2 CLEAR HEIGHT ABOVE BELT
H3 CLEAR HEIGHT ABOVE SHELF
TH TOTAL HEIGHT
Yontro
Yontro
STANDARD OPTION
Belt Width 400 mm 100 mm to 1800 mm
In multiples of 50 mm
Conveyor Length As per user requirement
Belt Type Option of PVC / PU / ESD / Rough Top or Super Grip
Belt Thickness 2.0 / 3.0 / 4.0 / 5.0 mm
Belt Support on Top Powder coated MS Panel SS panel / Roller bed
Best Support Bottom Rollers at a distance of 1800 mm Rollers as per design requirement
Structure Powder coated MS pipe frame SS frame / Anodized Al profile
Conveyor Speed Fixed or Variable as per user requirement
Working Height 750 mm 900 mm OR As per user requirement
Total Height 2000 mm As per user requirement
Height adjustment +/- 50 mm As per user requirement
Ht. Adj. Method Through Levelling Feet Through bracket or other arrangement
Side Working Platform Parallel to Belt • Width 300 mm
• Laminated Board (White) 		• Wooden Board with ESD/PVC mat
• SS Sheet Metal Panel
• Powder coated MS Panel
Independent Working Platform Perpendicular to Belt • Size-As per requirement
• Laminated Board (White) 		• Wooden Board with ESD/PVC mat
• SS Sheet Metal Panel
• Powder coated MS Panel
Shelf above Belt Provided of Laminated Board (White Laminate) • Not Required
• Wooden Board with ESD/ PVC Mat
• SS Sheet Metal Panel
• Powder coated MS Panel
Display Board Acrylic Sheet
( Green) 		• Pin Board with colour of your choice
• White Board
• Magnetic Board
Lighting We provide sheet metal reflectors one per 6 feet module on both side of belt • LED Tube light one at every 6 feet module on both side of belt
• Qty of lights as per your requirement
Power Socket Provided on request with following information :

• Combination of Socket & Switch required per board with current specification
• Number of power board per 6 feet module
• Placement of the Power board
Pneumatic Line Provided on request with following information :

• Number of outlets per 6 feet module
• Output Required by QRC or Ball Valve
• Placement of Line above the top post or beneath the belt

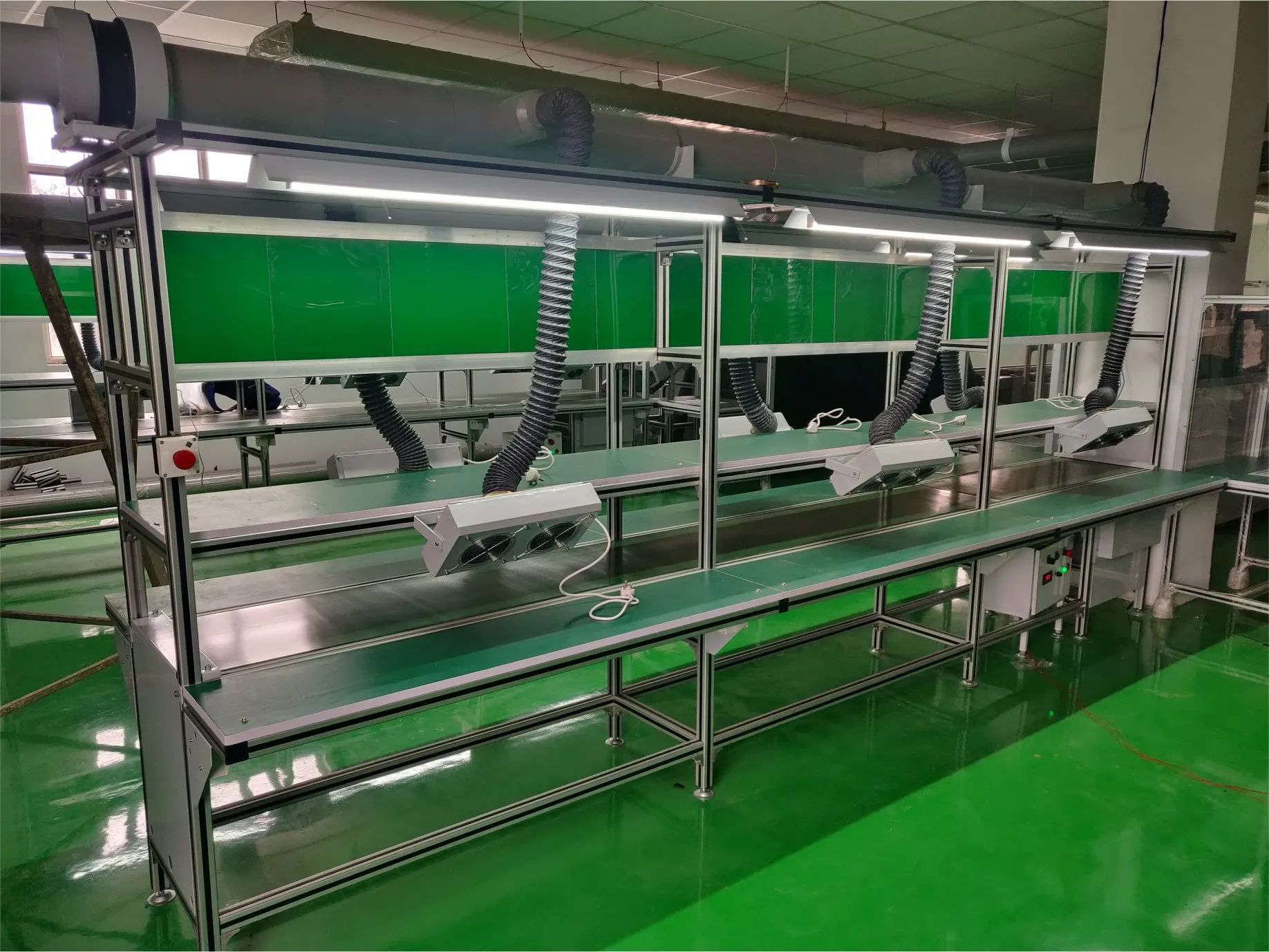

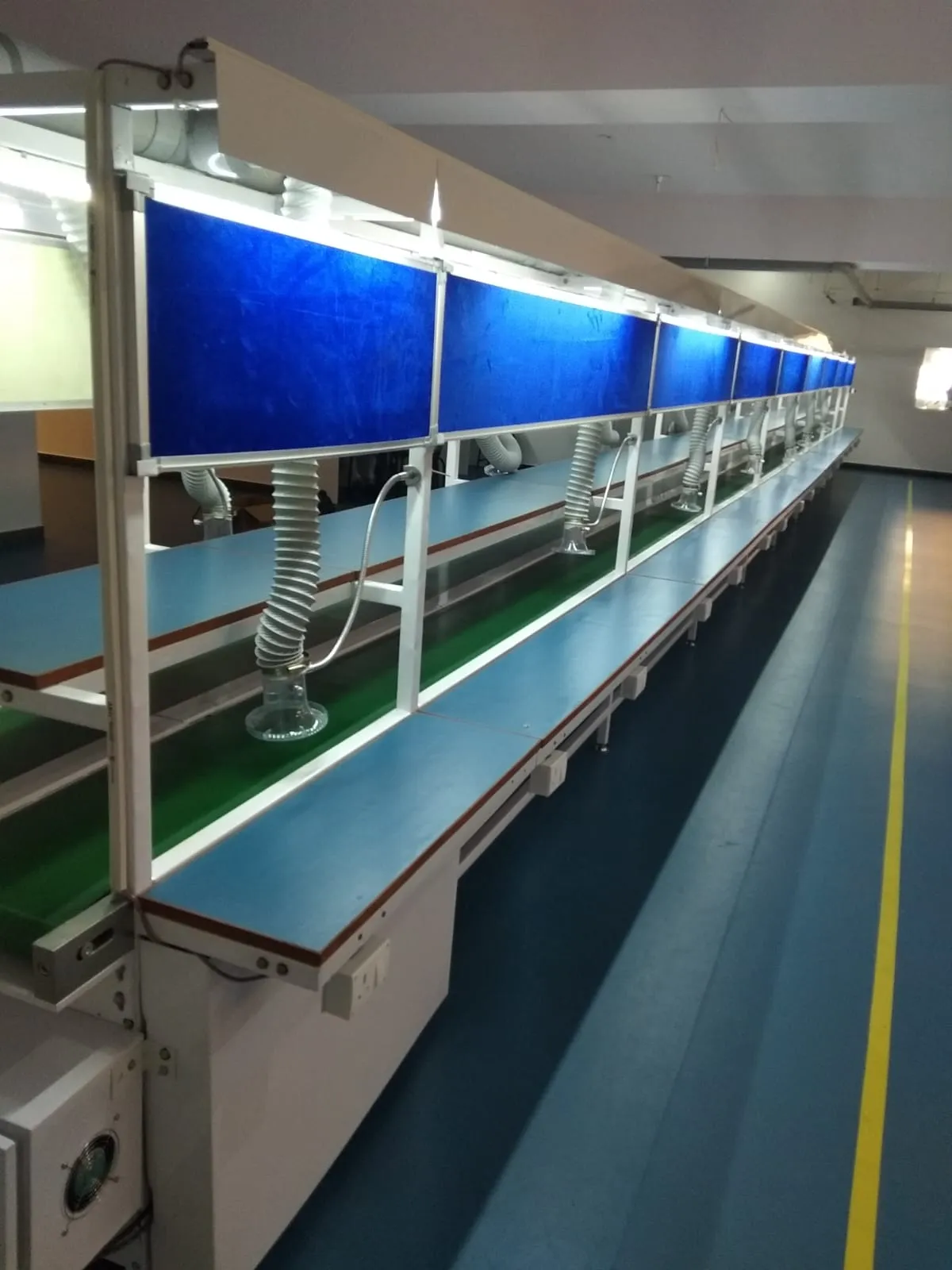

Fume Exhaust Pipe Line Provided on request with following information :

• Number of exhaust outlets per 6 feet module
• Inline Fans – Imported or Yontro Make
• Standardly one Inline fan is provided per 12 feet length
Other Optional • Tool Slider for Spring Balancer on Top Post
• Sensor for start / stop
• Partition above belt
• Wall Fan on Top Post 		• Cable Tray
• Bin Rail
• Bottle Holder
• Dustbin Holder
• Drawer Cabinet
ITEM INFORMATION TO BE PROVIDED
• Item to moved
• Weight of one unit
• Total weight on conveyor 		• Product to be stopped / dropped at the end of conveyor or to be transferred to another conveyor
