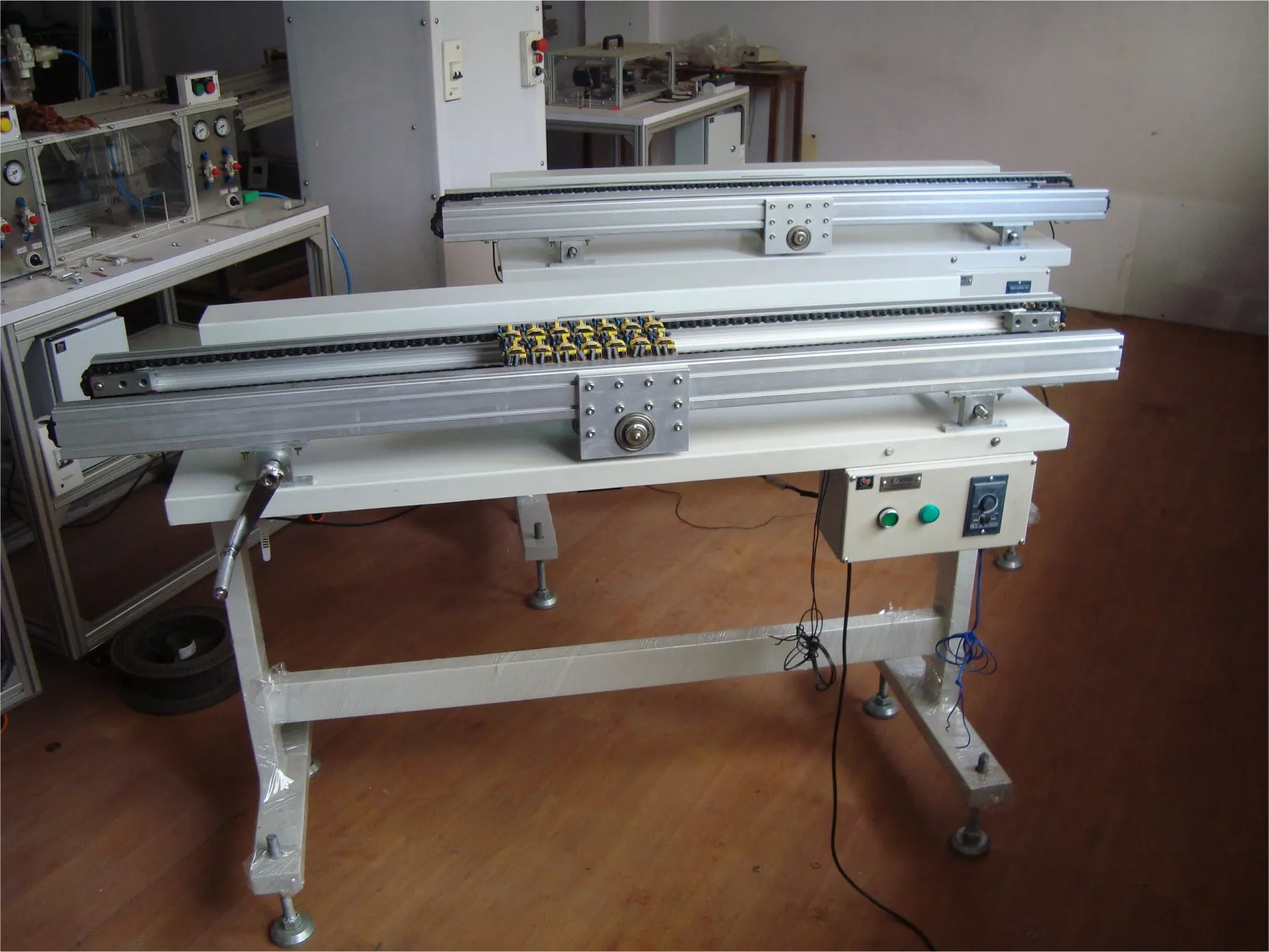

Input conveyor wave soldering single-sided

This conveyor is designed to feed the PCB’s into the finger type wave soldering machine. This conveyor works as an intermediate between the MI line and the wave soldering machine or is used to feed the PCB’s from the magazine rack.

Enquire Now Call Now @ +91 987 1008 473
Dimensions
L CONVEYOR LENGTH 1.0 M
W PCB WIDTH 50-350 mm
TW TOTAL WIDTH 600 mm
H1 WORKING HEIGHT 750 mm
Yontro
Specification
Conveyor Type Pin chain conveyor
Length of Conveyor 1000 mm
PCB Width 50 – 350 mm
Conveyor Speed Variable from 0.5M to 5.0M/min
Structure Powder Coated MS pipe structure of cross section 38 x 38 mm / Anodized aluminium profile of side 40 x 40 mm
Working Height 800 mm +/- 250 mm
Height Adjustment +/- 25 mm through Levelling Feet
Chain Extended pin with nylon roller Dia 11mm
Power Supply 220 V AC, 50 Hz
Motor Drive Geared induction motor with speed controller
