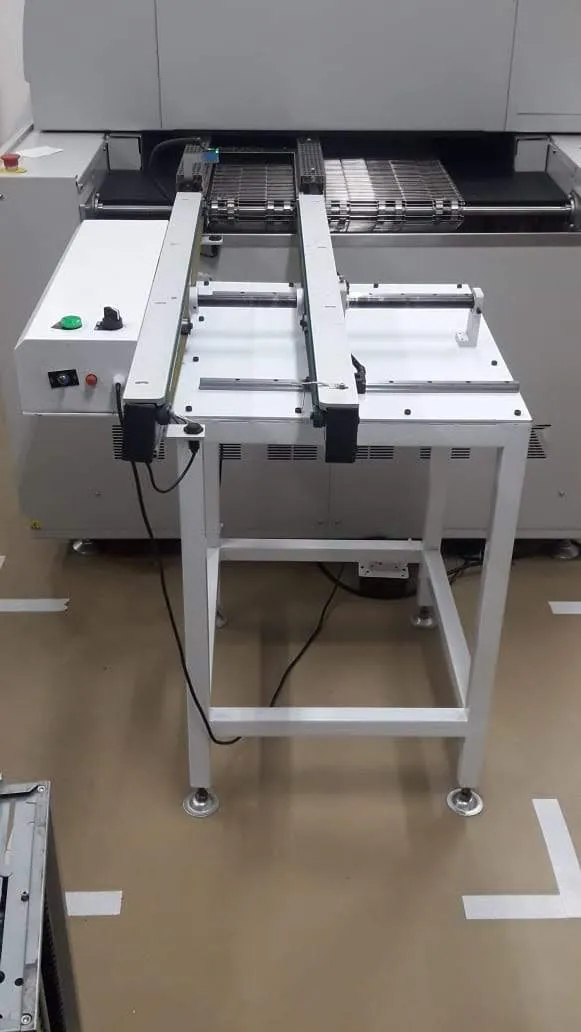

These SMEMA compatible conveyors are used for transferring PCB’s from Stencil Printer to Pick and Place machine and from the pick and place machine to the reflow oven etc.
These SMEMA compatible conveyors are used for transferring PCB’s from Stencil Printer to Pick and Place machine and from the pick and place machine to the reflow oven etc.
A width adjustable and adjustable speed, edge belt conveyor is used for this application. It comes in lengths of 0.5M, 1.0 M and 1.5 M. The conveyor is SMEMA compatible using SMEMA connectors, Photo sensors and relay card for the logic. Based on the type of use i.e. linking or inspection, 2 or 3 sensors are used.
Features | ||
---|---|---|
Relay based logic (optional PLC based logic) | ||
Start/Stop Switch | ||
Anti-static and long life Conveyor Belt | ||
Easy way of belt replacement | ||
PCB Precise stopping in position | ||
Smooth and parallel width adjustment (Lead screw) | ||
SMEMA compatible | ||

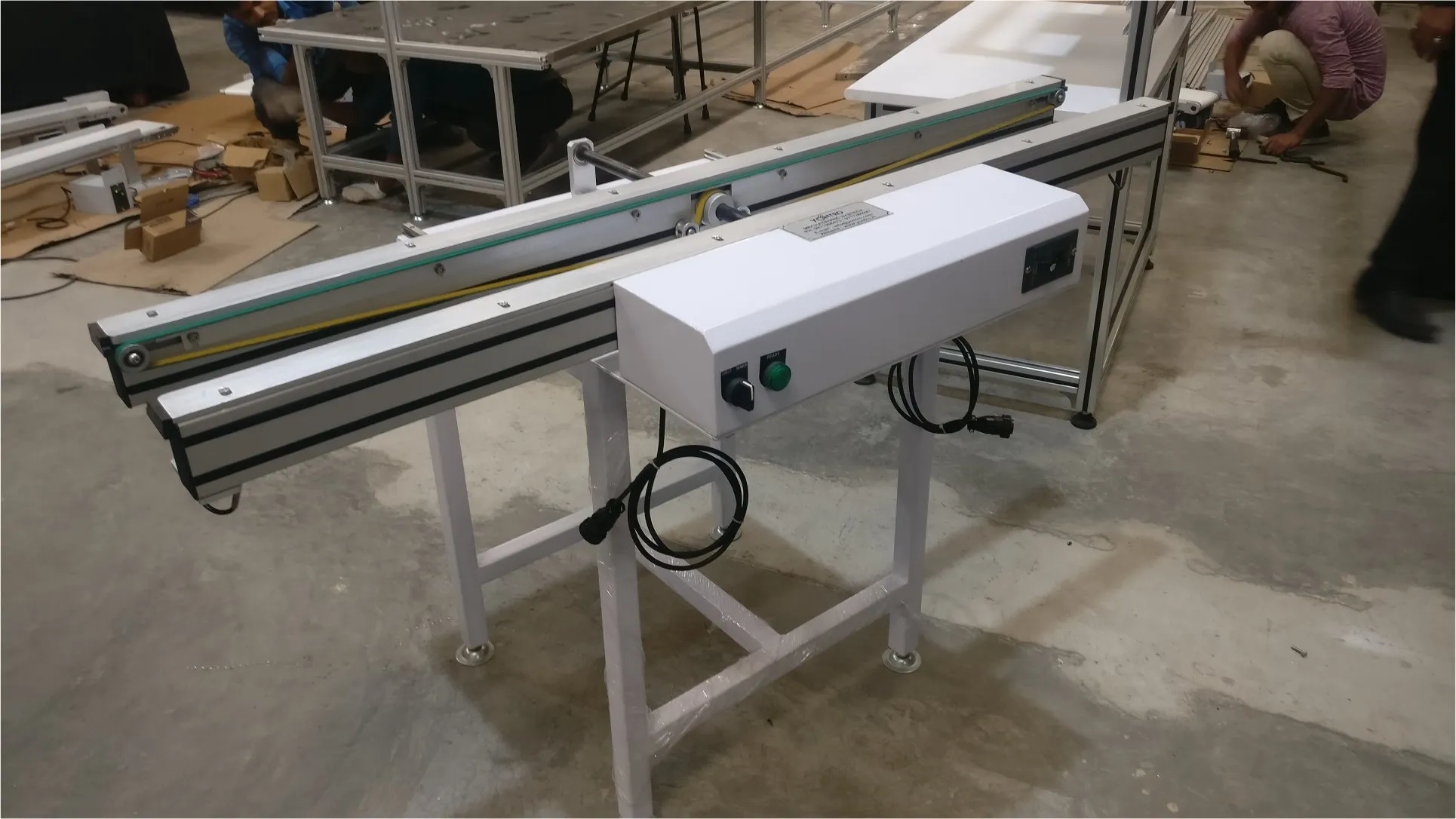

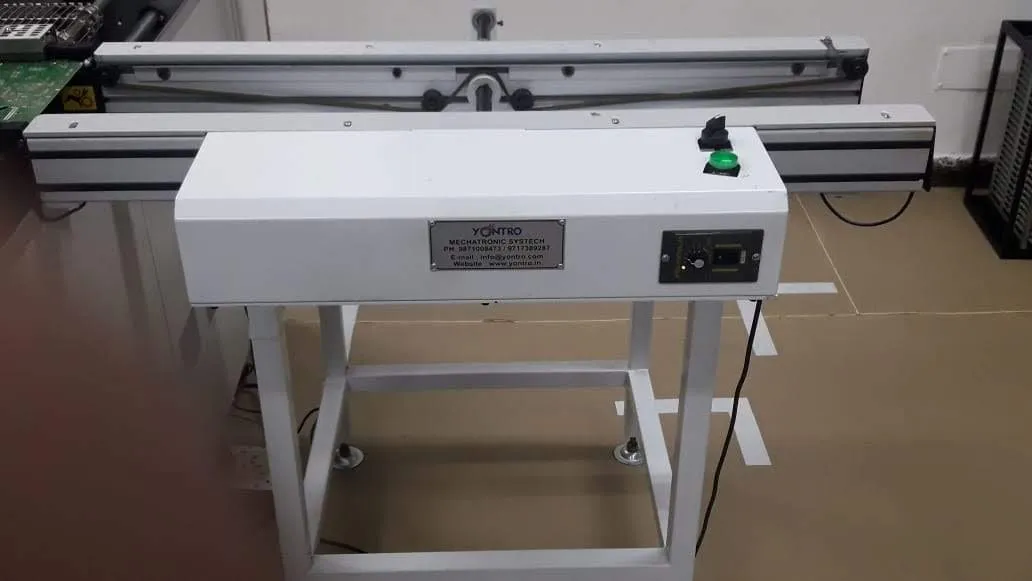

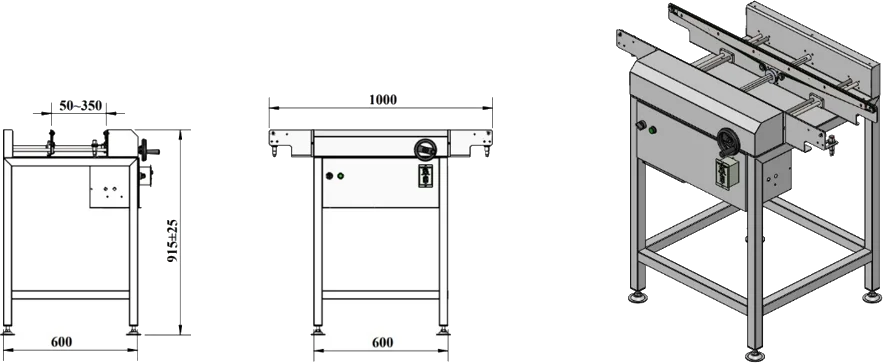

Linking Conveyor | ||
---|---|---|
WORKING HEIGHT | 915 mm +/- 25 mm | |
FLOW DIRECTION | Left to Right | |
FIXED RAIL | Front of the machine | |
INTERFACE | SMEMA | |
BELT TYPE | ESD Flat Belt | |
CONVEYOR SPEED | 0.3 to 2.0 M/min | |
PCB EDGE SUPPORT | 3 mm | |
COMPONENT CLEARANCE | 30 mm on bottom side | |
POWER SUPPLY | 220 V AC, 50 Hz | |
Motor Drive | Geared induction motor with speed controller | |
PCB Length | 50 – 350 mm | |
PCB Width | 50 – 300 mm | |
PCB Thickness | 0.8 – 4.0 mm | |
PCB Weight | 1.5 Kg | |
Dimension | L- 0.5 / 1.0 / 1.5 M, W- 600 mm, H- 915 mm | |

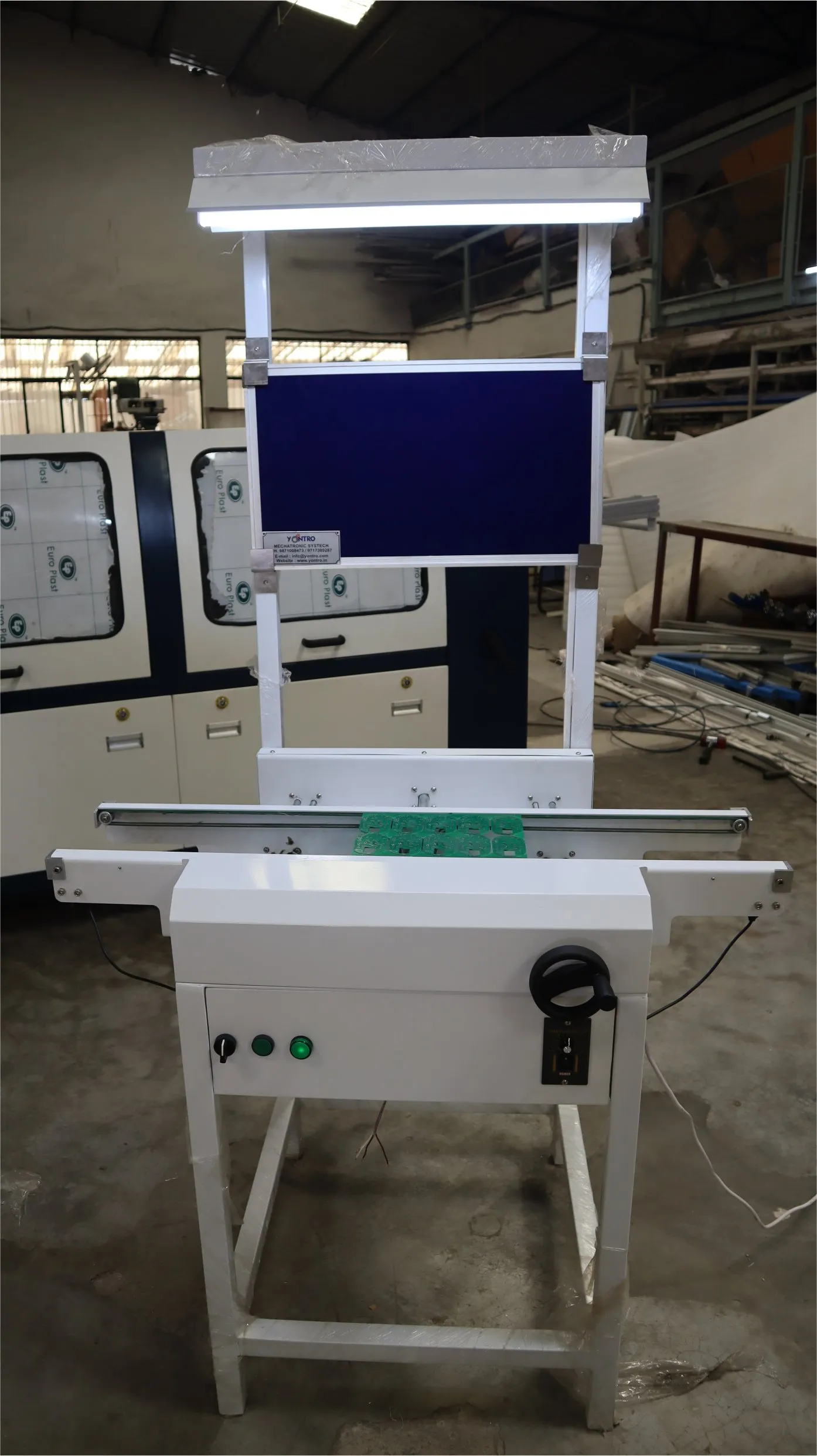

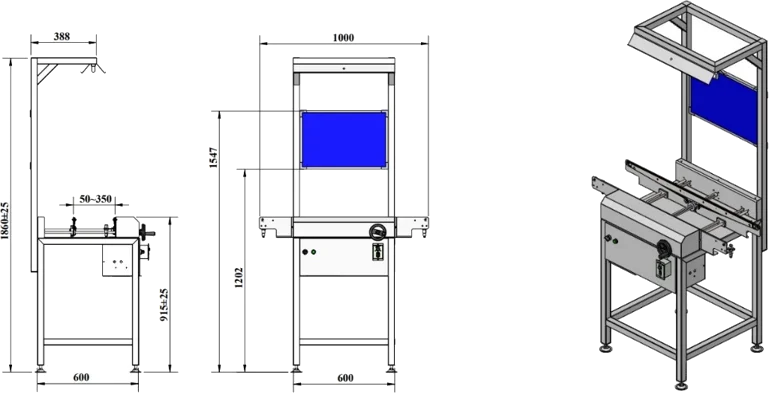

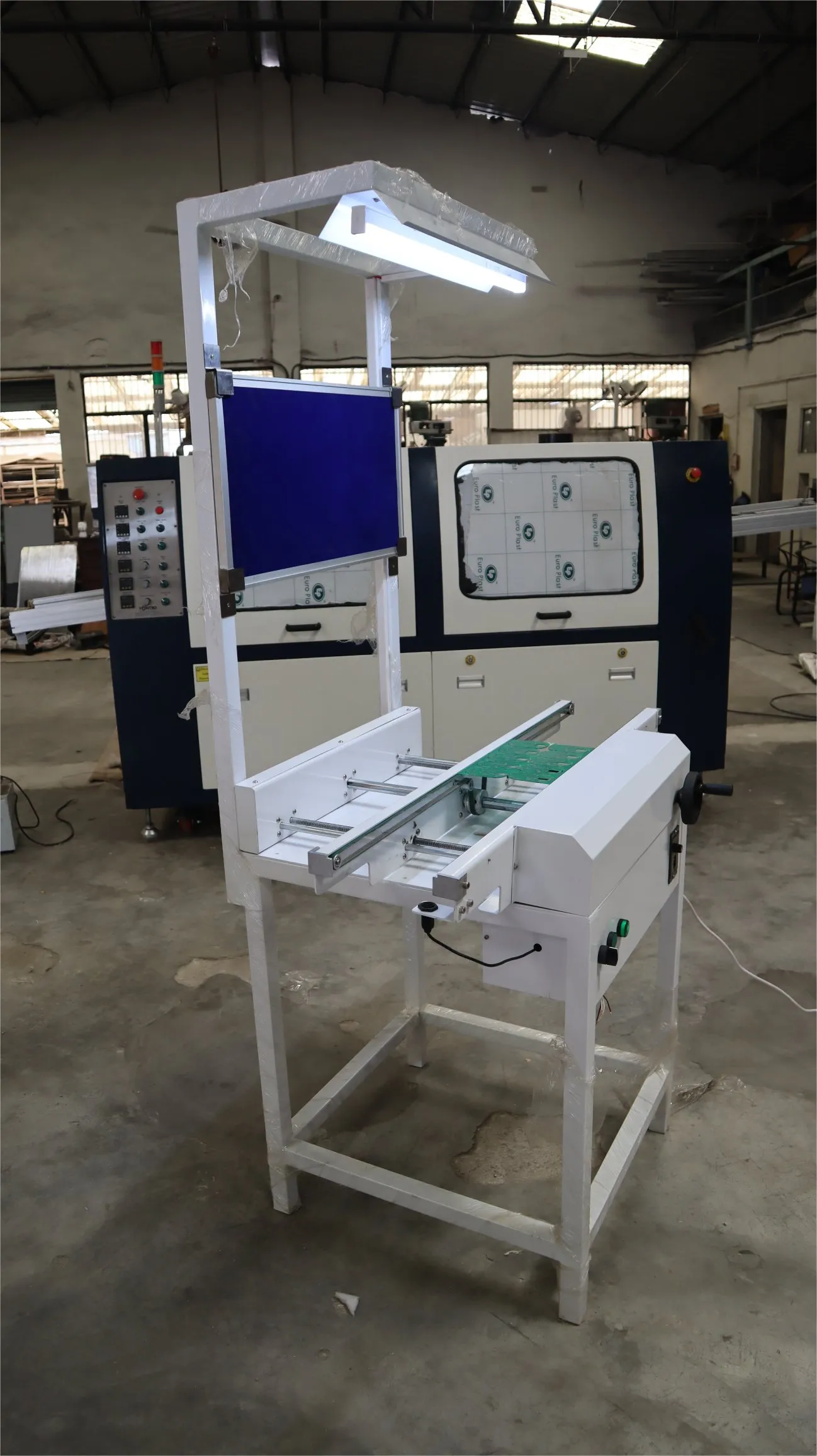

INSPECTION CONVEYOR | ||
Dimension | L- 0.5 / 1.0 / 1.5 M, W- 600 mm, H- 1860 mm | |
Top Post | Provided | |
Display Board | Pin Board provided | |
Lighting | LED light provided on top post |
