Motorised Single Sided MI Line

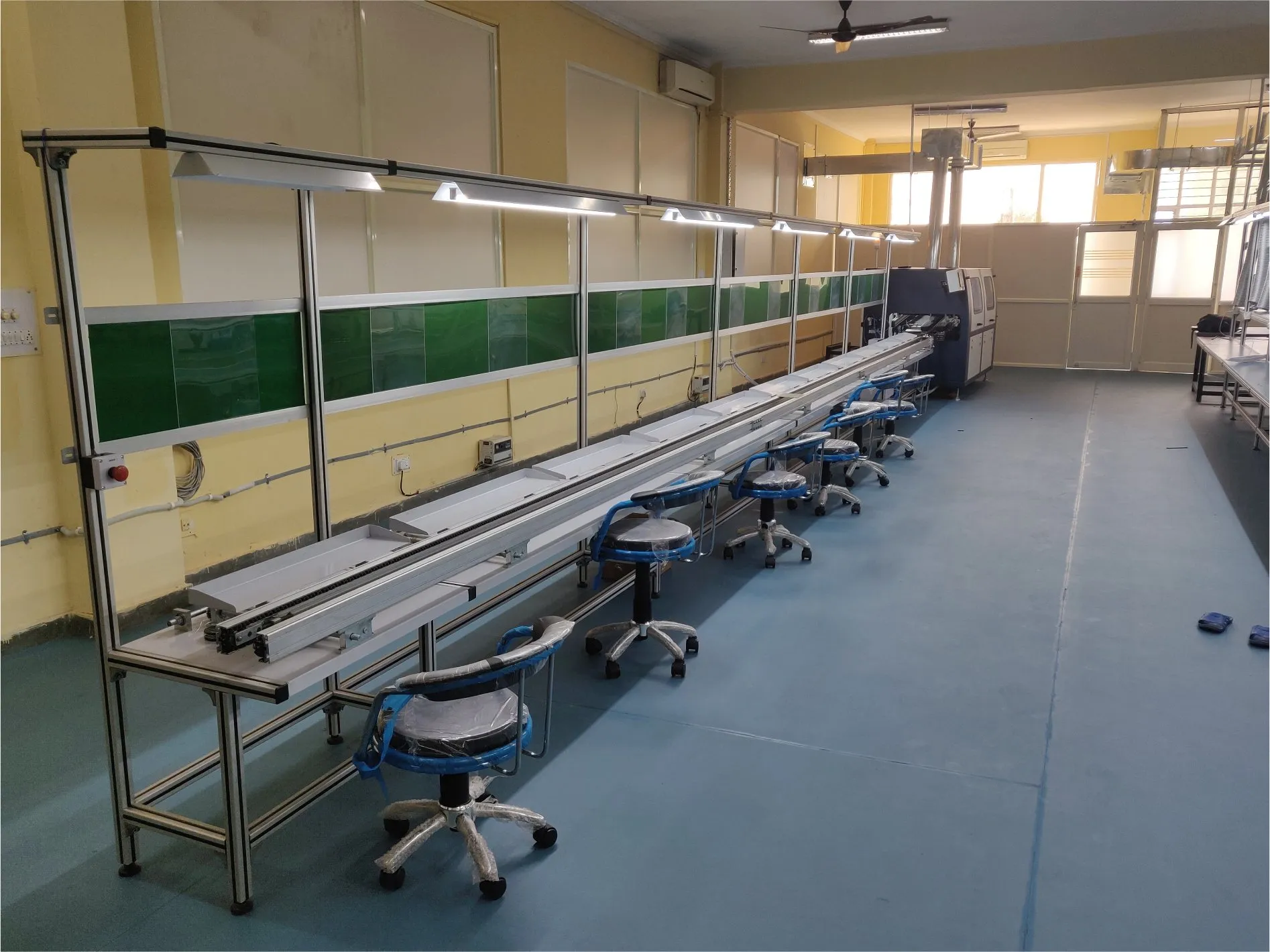

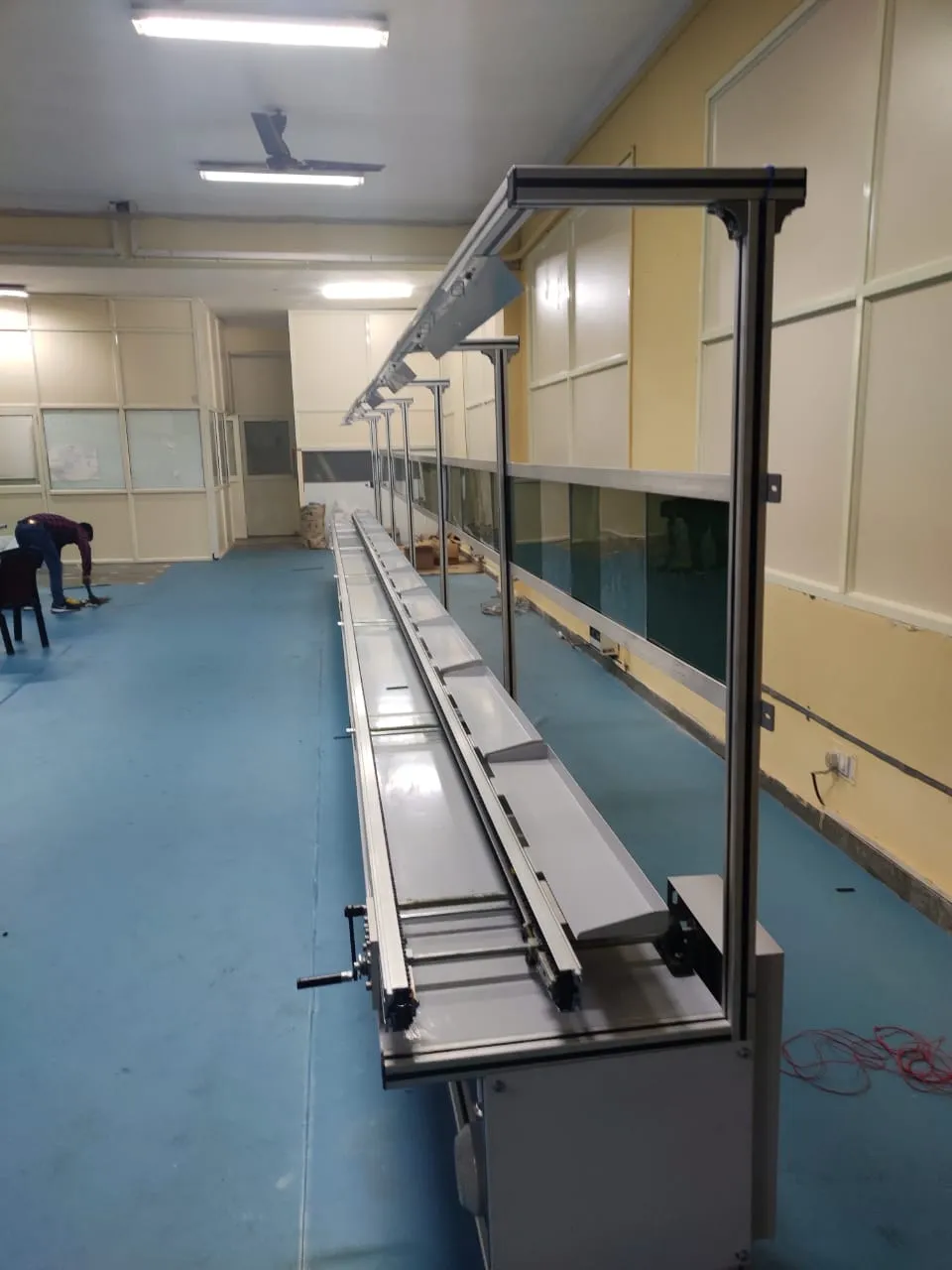

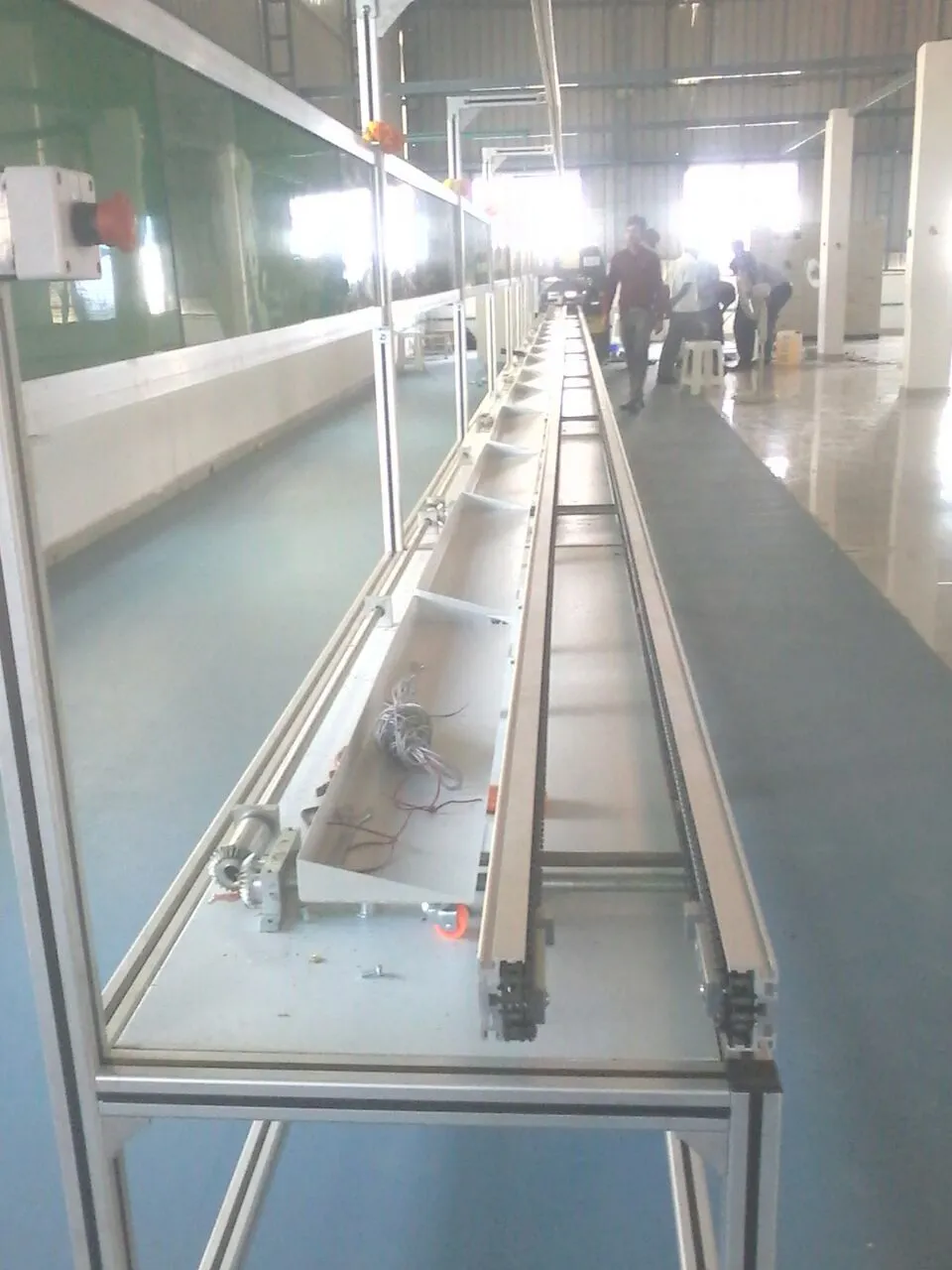

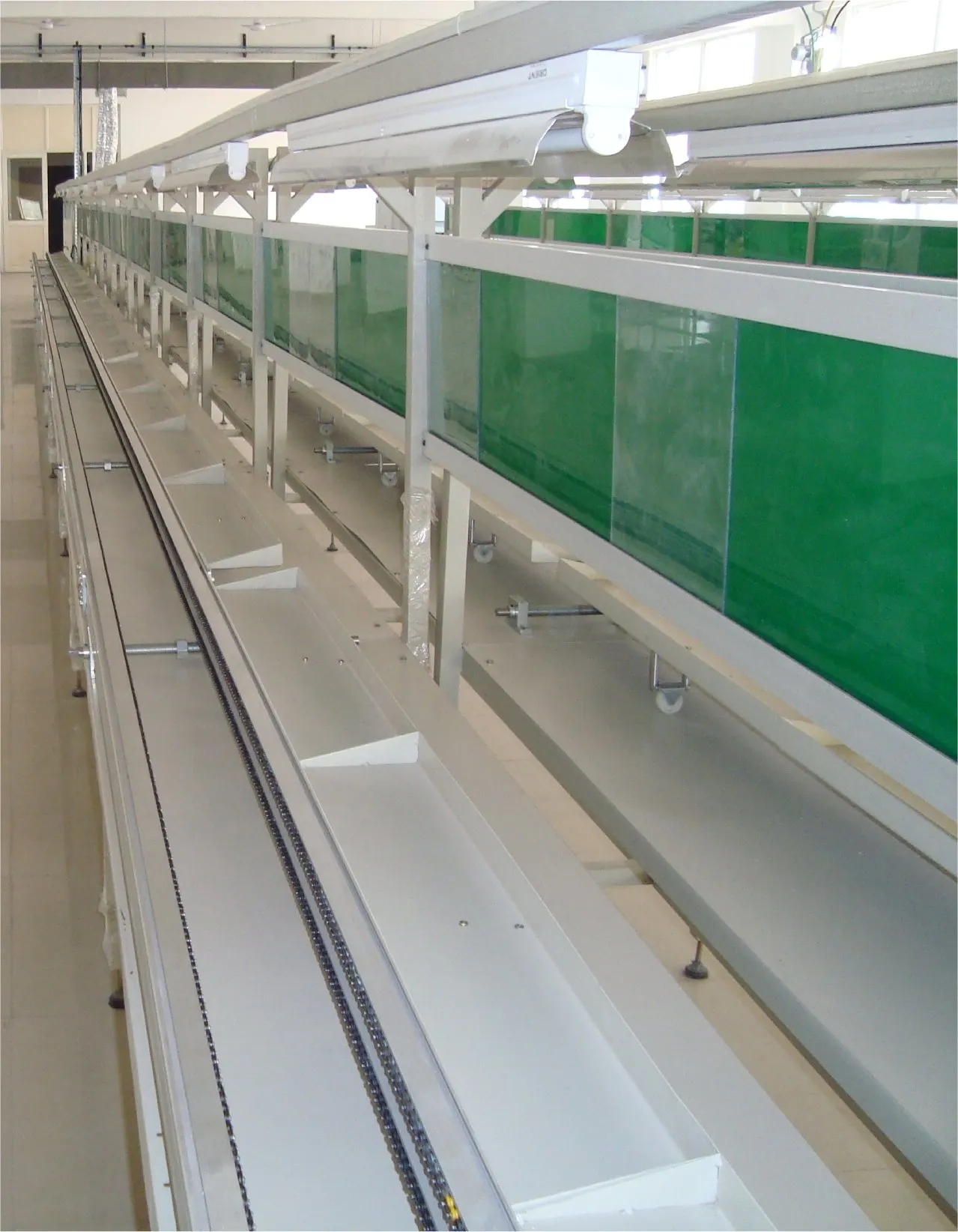

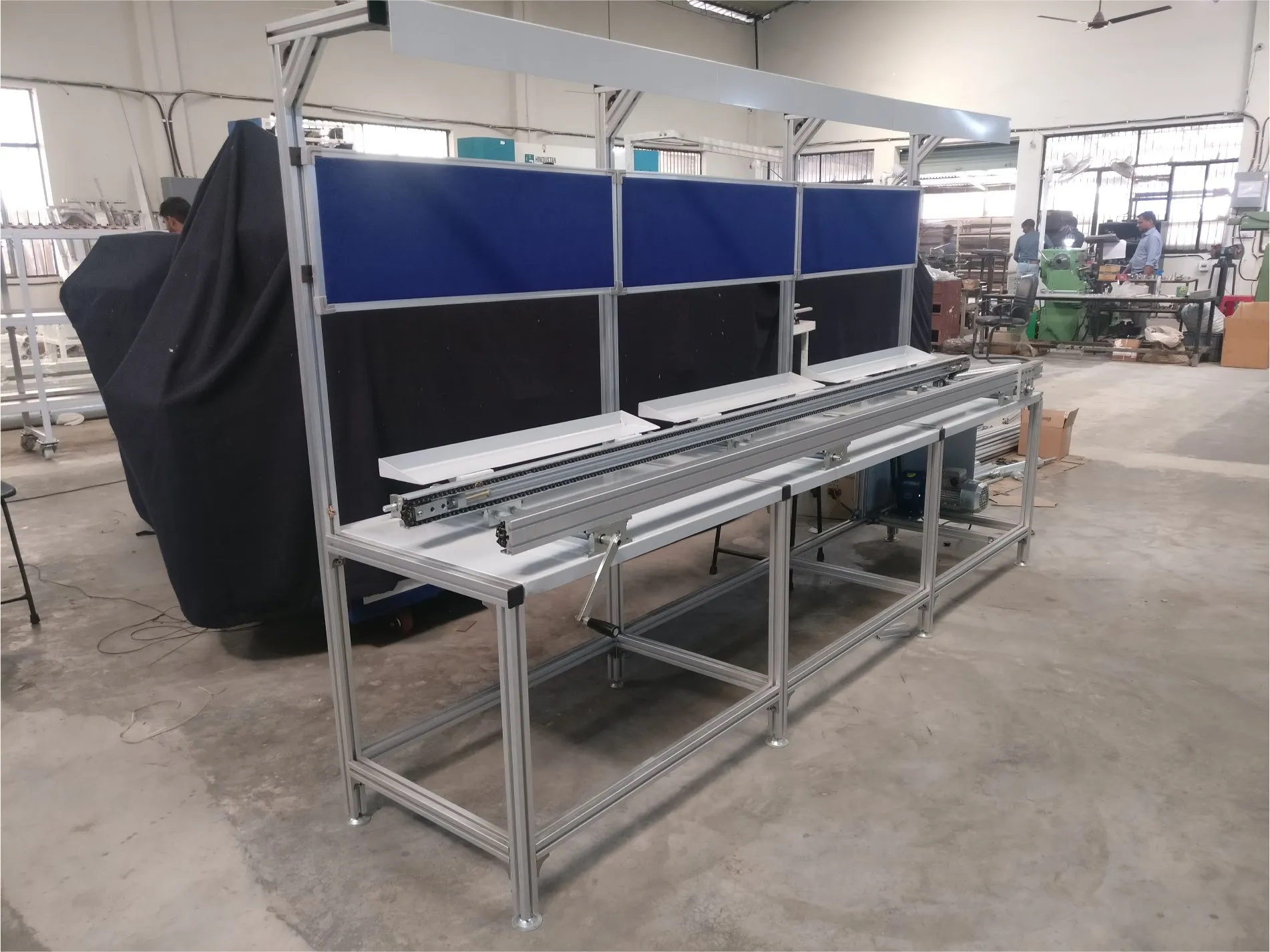

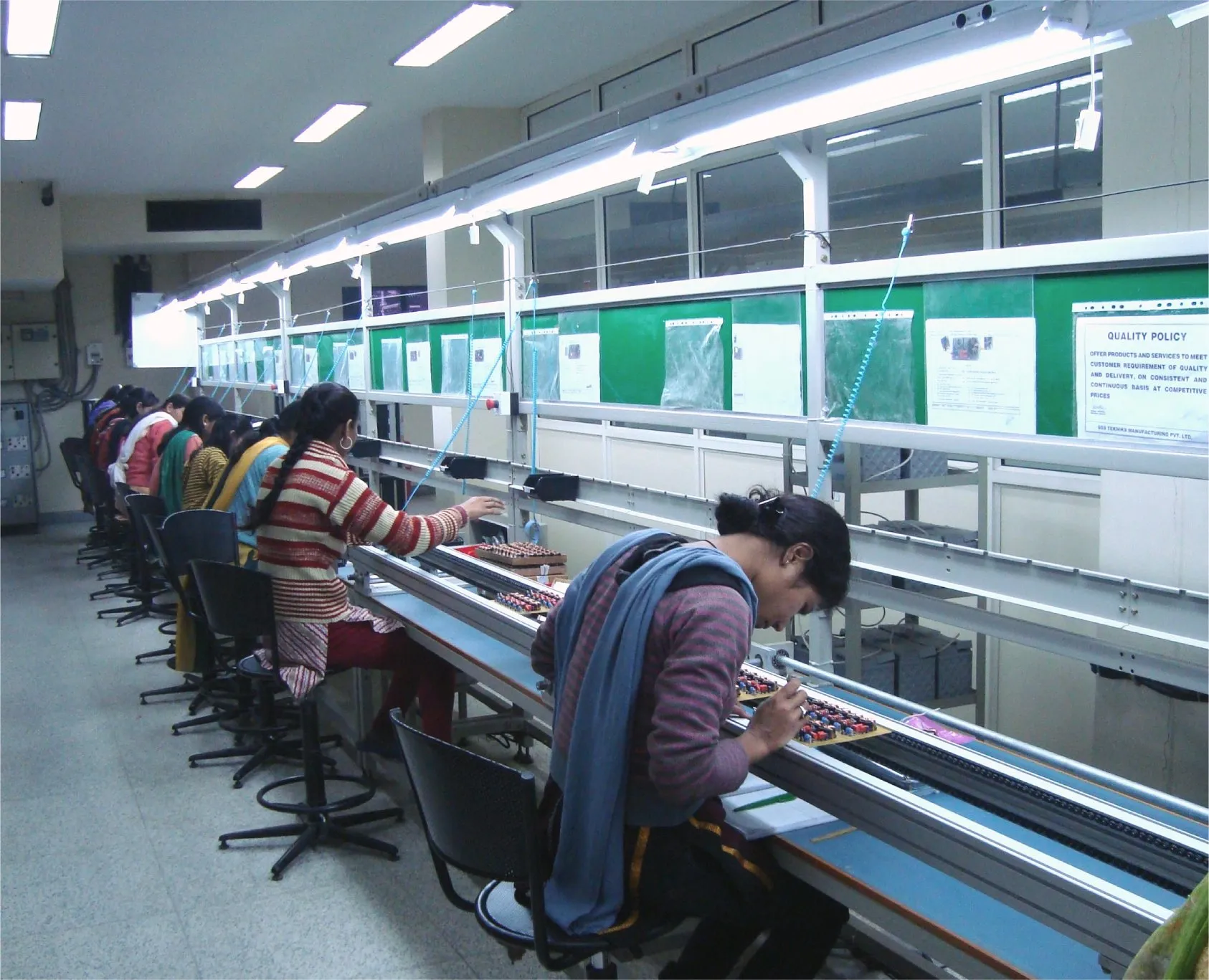

Single sided operation, with operators working on one side. This conveyor is suitable for directly transferring the PCB to the Wave soldering machine (finger type) In this conveyor line, the PCB moves on a chain conveyor, guided at its edges. On the moving conveyor, the operators insert the components.

The components are divided and distributed to the various operators working on the line. The operators sequentially insert the designated components into the respective locations. At the end of the line, all the components are inserted. And the board is ready for soldering.

The PCB’s are guided at the edges and the channels of the conveyor are adjustable as per the width of the PCB.

Enquire Now Call Now @ +91 987 1008 473

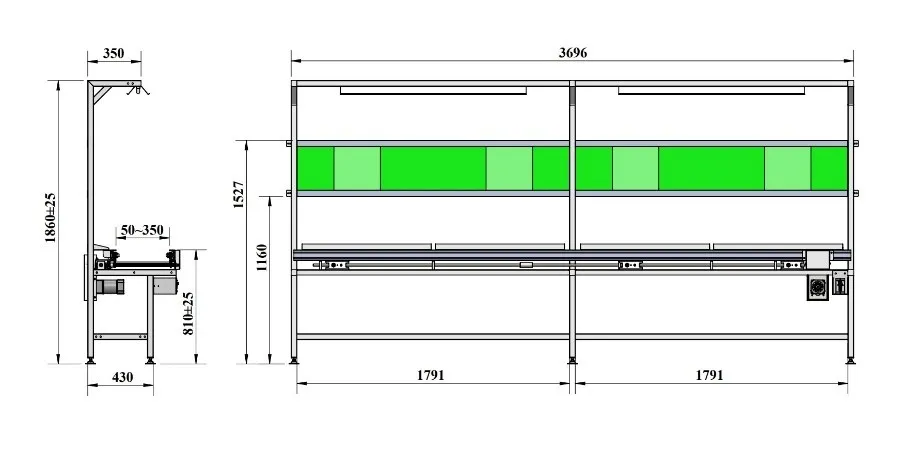

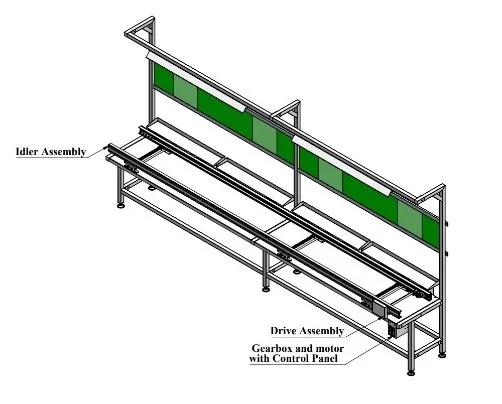

Features
Type of Conveyor Singe sided working with chain conveyor
PCB width 50 to350mm
Conveyor Length As per requirement
Overall Width 600 mm
Working Height 800 mm ± 25mm adjustable
Total Height 1800 mm ± 25mm adjustable
Structure Powder coated MS pipe structure OR Anodized Aluminum Profile 40 x 40 mm
Channel for Chain Special Aluminum extrusion for low Friction.
Chain Extended pin with nylon roller Dia 11mm
Front Channel Fixed
Rear Channel Adjustable from 50 to 350 mm
Speed (Variable) 0.75 to 1.5 M /min
Top Frame Provided for lighting fixture (Lights provided)
Working Top MS Sheet Metal Panel - Powder Coated
Component Storage Tray provided for placing Bin
Display Board Acrylic Board provided suitable for A4 size sheets
Motor Drive Three Phase Geared Motor. Make Bonvario
Speed Control By Variable Frequency Drive Make: Delta
Control panel 50 to 350mm
Emergency Switch Provided at both end
