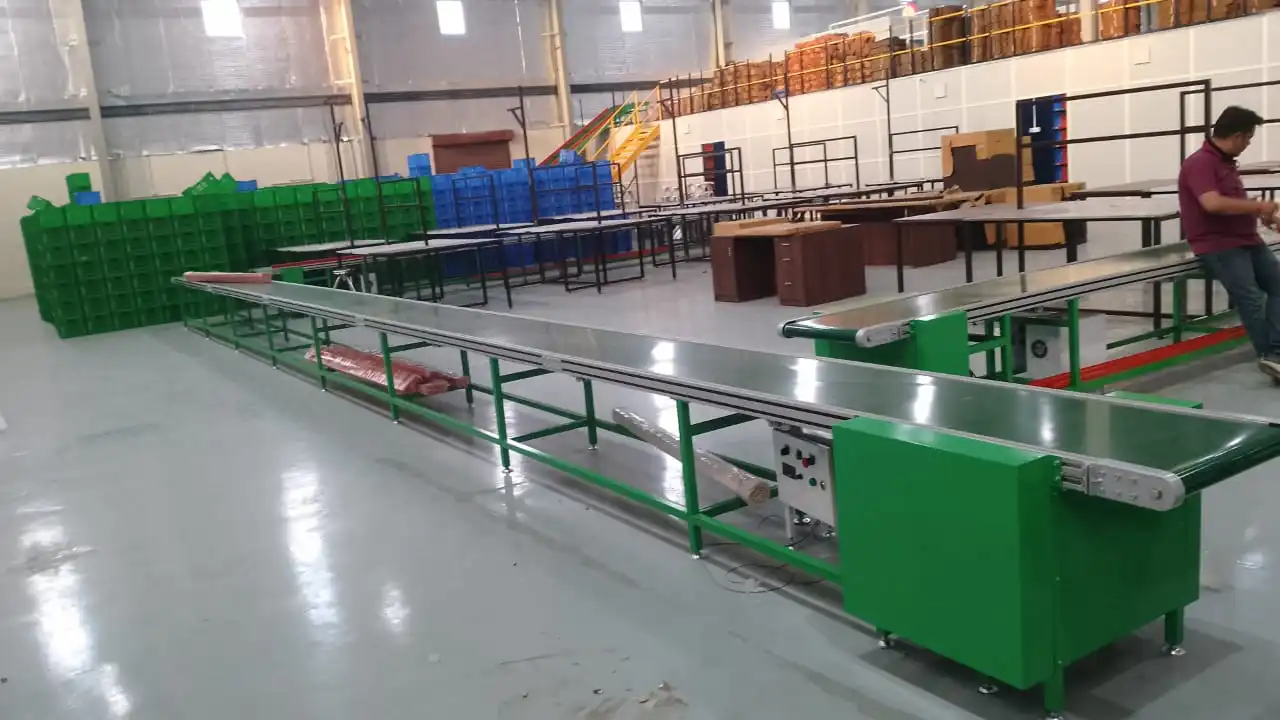

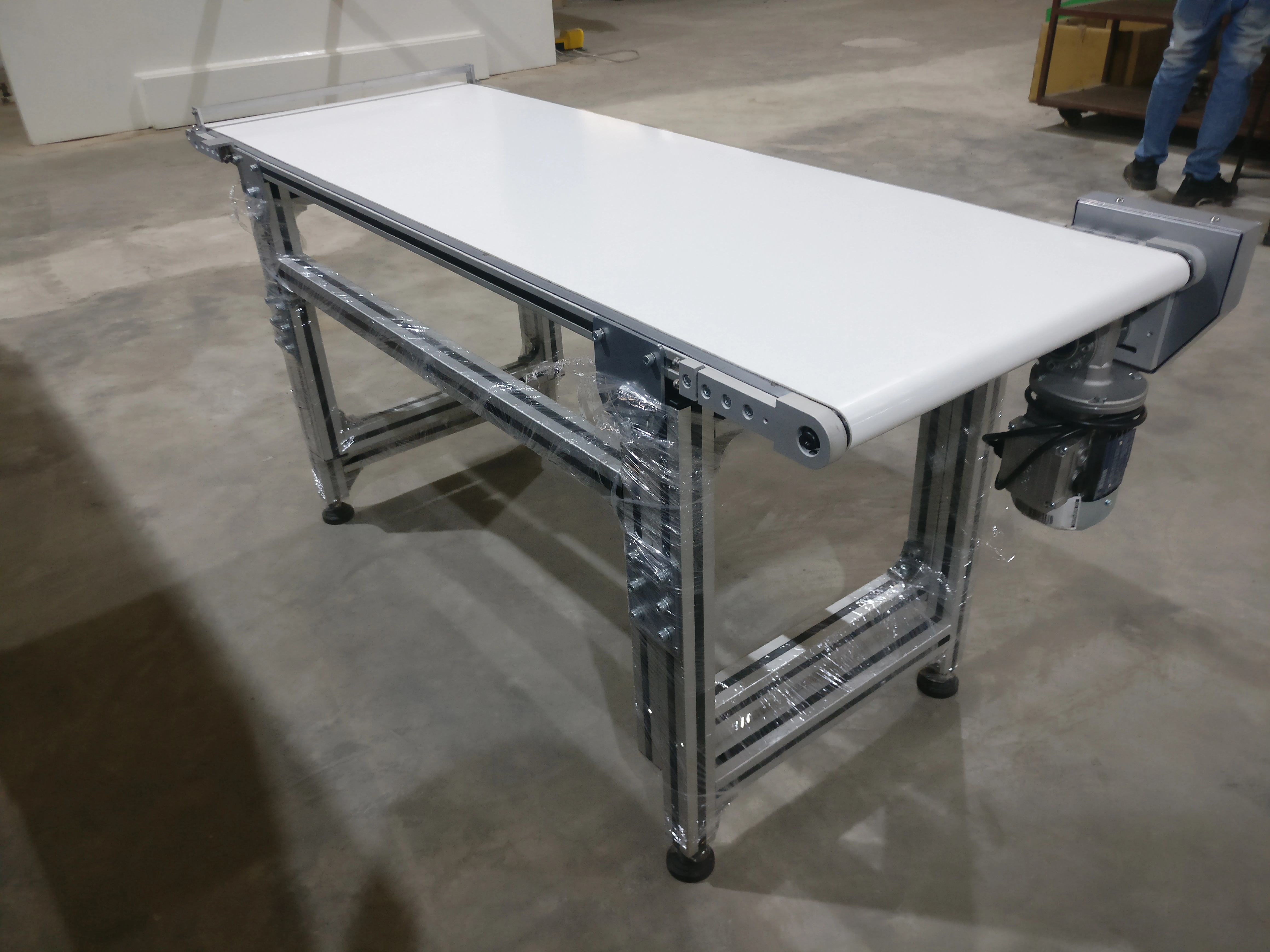

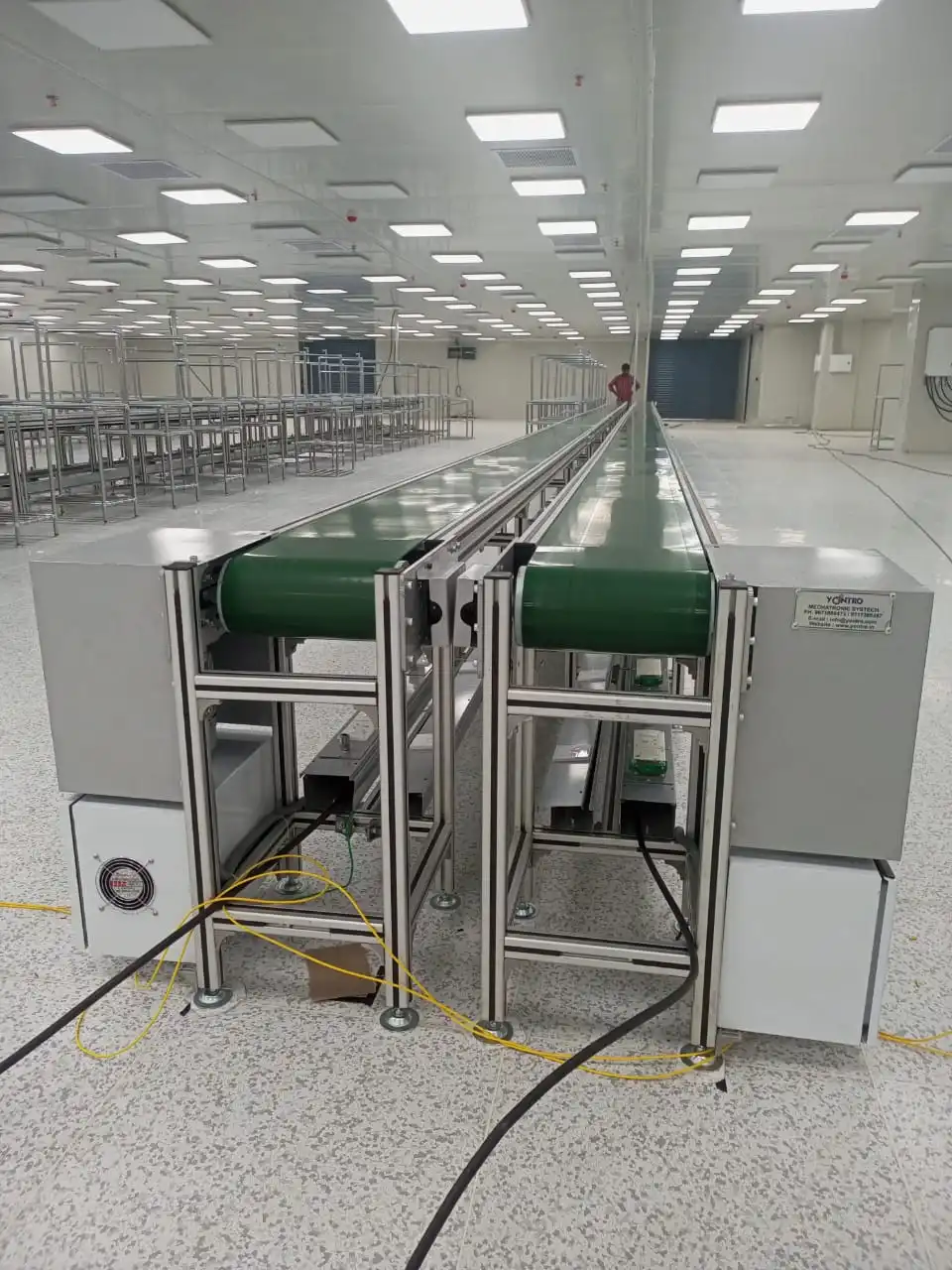

Flat Belt Conveyor

Belt conveyor

These conveyors are typically used for transporting goods and material, for automating assembly and processing, for shipping and packing and much more. The two ends of the conveyors can have the option of round roller edges or knife edge - which is ideal for transferring small products from one conveyor to the other. Choice of end-drive or middle-drive are available. The conveyors are fitted with standard motors with reduction gear box. When connected to a VFD, the conveyor can be run at slow speed with a maximum speed of 30 meter/minute.

Enquire Now Call Now @ +91 987 1008 473
DIMENSIONS
L LENGTH OF CONVEYOR
W BELT WIDTH
TW TOTAL WIDTH
H WORKING HEIGHT
FEATURES

Application Industries

  • Assembly Line
  • Packing Line
  • Inspection Line
  • Material Transfer
Flat Belt Conveyor
SPECIFICATIONS STANDARD OPTION
Belt Width 400 mm 100 mm to 1800 mm
In multiples of 50 mm
Conveyor Length As per user requirement
Working Height 750 / 900 mm As per user requirement
Height adjustment +/- 50 mm As per user requirement
Ht. Adj. Method Through Levelling Feet Through bracket or other arrangement
Belt Type Option of PVC / PU / ESD / Rough Top or Super Grip
Belt Thickness 2.0 / 3.0 / 4.0 / 5.0 mm
Structure Powder coated MS pipe frame / SS frame / Anodized Al profile
Conveyor Speed Fixed or Variable as per user requirement
ITEM INFORMATION TO BE PROVIDED
Item to moved Weight of one unit Total weight on conveyor
